Fresh XP Install, no internet connection


  • Please log in to reply

#1
AMBorgeson

AMBorgeson

    New Member

  • Member
  • Pip
  • 7 posts
Most annoying thing is, the network connection says 'connected'. But IE says no-go. OK, now the details, top to bottom.

This is a neighbor's Gateway eMachines laptop. He got it badly infected (computer would shut down in the middle of scans by most anti-malware software), so I did a full hard drive wiping install using the three original System Restore CDs, which should include all drivers.

Got computer up and running, connected it to my router via wire to keep things simple, started up ie, got the network connection wizard, went through it, told it I was connecting to an always on network.

Current setup/status:

The only connection it sees (due to wireless being a big ? on devices) is 1394 Net Adapter. Status: Connected. Speed: 400Mbps Type: "LAN or High Speed Internet"

My router's light goes on to say that it sees the NIC on the other end of the ethernet cable.

Internet options -> connections -> LAN Settings, auto-detect is checked

In Command window, the following three commands all get the same response:
IPCONFIG /RELEASE
IPCONFIG /RENEW
IPCONFIG /ALL

the response is "Windows IP Configuration" in the next line, then I'm getting the command prompt. No actual information

if I ping the NIC, I get a normal 0ms response, if I ping 192.168.1.1 I get "Destination Host Unreachable" :) that's my router, it's the next [bleep] step on the chain, and yet it can not seem to talk to my router, and I don't know why.

I double checked, my router is configured to accept up to 50 DHCP clients, which is way more than needed, so it should be handing out IP Addresses when requested, and the laptop as near as I can figure, should be asking for them.

and yes, I've rebooted. Both devices. So, I'm at a loss here. Help?
  • 0

Advertisements


#2
phillipcorcoran

phillipcorcoran

    Member 1K

  • Member
  • PipPipPipPip
  • 1,293 posts
I'm on an 'always on' connection and in Internet Explorer's LAN settings (Internet Options) all three options are un-ticked, and it's working fine. I do remember on a friends computer if Internet Explorer's LAN settings had "Automatically detect settings" enabled (ticked), IE would not connect. I disabled that option (unticked), restarted IE and it connected to the web no problem.

But I can tell you for sure that IE's LAN settings on my PC, all three LAN options are un-ticked, not just the top one. And that applies to both my desktop PC (wired connection) and my laptop (wireless connection). IE connects to the web no problem on both of them.

If that is not the solution to your problem, I'm troubled by the fact you're using a 1394 net adapter to connect the pc to your router. 1394 (commonly known as Firewire) is not intended for internet connections as far as I know. It's for networking two computers together, or connecting a movie camera to convert the movie for creating a DVD, or connecting an external hard drive with a firewire interface.

The 1394 device you refer to is not an ethernet adapter.

Edited by phillipcorcoran, 29 December 2009 - 07:18 AM.

  • 0

#3
123Runner

123Runner

    Member 4k

  • Member
  • PipPipPipPipPipPipPip
  • 4,307 posts
As stated the 1394 is firewire and not for the network.
The fact that you used restore CD's would normally indicate/ re-install all software and drivers.

I would wonder if the restore CD's are the correct ones for the computer.

Since you say wireless did not install, I wonder what else did not.
Please Go to
1: STARTand the click on RUN
2: Type in devmgmt.msc
3: Click Enter
4. Look for any entries with Yellow Exclamation ! marks or Red X's

In your next reply please include those results
  • 0

#4
DaffyKantReed

DaffyKantReed

    Member

  • Member
  • PipPipPip
  • 485 posts
@AMBorgeson

You don't have the NIC driver installed or it's been disabled in Device Manager.
Reinstall the driver, and it should work without configuration, barring any hardware problems.
  • 0

#5
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
123Runner the network is one of the few things that XP installation normally will ask if you want to install. Some people will get confused on this thinking the installations is asking about a LAN setup and tell it not to install. As a suggestion you might check it out and see if it was never installed. :) :) :) :)
  • 0

#6
123Runner

123Runner

    Member 4k

  • Member
  • PipPipPipPipPipPipPip
  • 4,307 posts
I understand that Rshaffer61, but..

Got computer up and running, connected it to my router via wire to keep things simple, started up ie, got the network connection wizard, went through it, told it I was connecting to an always on network.

The OP attempted to install the network.
I still think he is missing some drivers. Lets see what come back.
  • 0

#7
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
I missed that point 123Runner sorry about that.
  • 0

#8
AMBorgeson

AMBorgeson

    New Member

  • Topic Starter
  • Member
  • Pip
  • 7 posts
My "other" devices are Ethernet controller, Network Controller, PCI Modem, Video Controller

Why the [bleep] does it think the firewire port is connected/ Unless it looks EXACTLY like an ethernet port, the onlything wired in other than power, is the Ethernet.

network connections only shows the firewire port. I disabled it and ran the set up wizard, but it would not see/use anything else.

Um, if emachines are not owned by Gateway, which I thought they were, then you are right about it not being the right set of restore disks, and I have no idea how he got these ones.

Ok, so trying out downloading and transferring drivers from emachines.com, to this computer, to his. let's see how it works

As stated the 1394 is firewire and not for the network.
The fact that you used restore CD's would normally indicate/ re-install all software and drivers.

I would wonder if the restore CD's are the correct ones for the computer.

Since you say wireless did not install, I wonder what else did not.
Please Go to
1: STARTand the click on RUN
2: Type in devmgmt.msc
3: Click Enter
4. Look for any entries with Yellow Exclamation ! marks or Red X's

In your next reply please include those results


  • 0

#9
123Runner

123Runner

    Member 4k

  • Member
  • PipPipPipPipPipPipPip
  • 4,307 posts
What you need are the chipset drivers.
If you find the ethetnet control driver you do that 1 first and then when you have internet you can download the others directly to the computer.

Whate is the model of the unit and I can see what I can find.
  • 0

#10
AMBorgeson

AMBorgeson

    New Member

  • Topic Starter
  • Member
  • Pip
  • 7 posts
I found the ethernet driver at emachines.com, and as soon as I finish updating windows, I'll go grab the rest of the drivers off of there. Thanks for the assist. :)
  • 0

Advertisements


#11
123Runner

123Runner

    Member 4k

  • Member
  • PipPipPipPipPipPipPip
  • 4,307 posts
Thanks for the update.

Make sure you have a firewall running and a virus scanner.
  • 0

#12
AMBorgeson

AMBorgeson

    New Member

  • Topic Starter
  • Member
  • Pip
  • 7 posts
yep, it's firewalled through my router as well as WinXP's firewall.

Have Avast and Spybot 1.6.2 up and running on the laptop now, SP3 installed, getting optional updates now, and only down one driver.

the driver emachines has for their M5213 laptop seems to be wrong, I can't get the computer to install it as the proper driver for the ? "Network controller" which is my only unknown device now. I've sent their tech support an email.
  • 0

#13
123Runner

123Runner

    Member 4k

  • Member
  • PipPipPipPipPipPipPip
  • 4,307 posts
My searching hasn't even found a M5213 emachine.

Lets see if we can get a board name and go from there.
Download and install Free Everest Home Edition
Open it.
1: In left pane expand Computer folder.
2: Click once on Summary
3: In upper menu, go Report
4: And then to Quick Report-Summary
5: Save it in text file, and paste it in your next post.

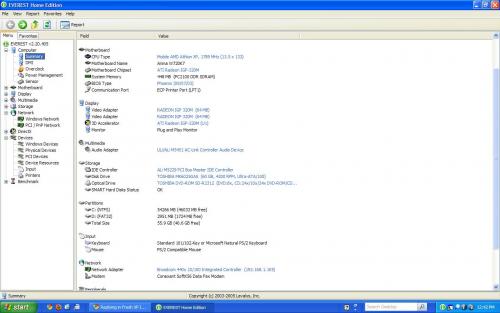

Click the + by computer, click on Sensor. Get a screenshot and post it so I can check your temps and voltages...

DO NOT INCLUDE ANYTHING UNDER THE LINE THAT SAYS "DEBUG- PCI"
  • 0

#14
AMBorgeson

AMBorgeson

    New Member

  • Topic Starter
  • Member
  • Pip
  • 7 posts
mmm, your instructions seem to be for an older version, they don't apply after clicking on report, there is no 'quick report summary', i selected hardware report. so here's what I believe you were looking for.

--------[ EVEREST Home Edition © 2003-2005 Lavalys, Inc. ]------------------------------------------------------------

Version EVEREST v2.20.405
Homepage http://www.lavalys.com/
Report Type Report Wizard
Computer LAPTOP (Charlie's)
Generator Admin
Operating System Microsoft Windows XP Home Edition 5.1.2600 (WinXP Retail)
Date 2009-12-30
Time 12:37


--------[ Summary ]-----------------------------------------------------------------------------------------------------

Computer:
Operating System Microsoft Windows XP Home Edition
OS Service Pack Service Pack 3
DirectX 4.09.00.0904 (DirectX 9.0c)
Computer Name LAPTOP (Charlie's)
User Name Admin

Motherboard:
CPU Type Mobile AMD Athlon XP, 1789 MHz (13.5 x 133)
Motherboard Name Arima W720K7
Motherboard Chipset ATI Radeon IGP-320M
System Memory 448 MB (PC2100 DDR SDRAM)
BIOS Type Phoenix (09/07/03)
Communication Port ECP Printer Port (LPT1)

Display:
Video Adapter RADEON IGP 320M (64 MB)
Video Adapter RADEON IGP 320M (64 MB)
3D Accelerator ATI Radeon IGP-320M (U1)
Monitor Plug and Play Monitor

Multimedia:
Audio Adapter ULi/ALi M5451 AC-Link Controller Audio Device

Storage:
IDE Controller ALi M5229 PCI Bus Master IDE Controller
Disk Drive TOSHIBA MK6025GAS (60 GB, 4200 RPM, Ultra-ATA/100)
Optical Drive TOSHIBA DVD-ROM SD-R2312 (DVD:8x, CD:24x/10x/24x DVD-ROM/CD-RW)
SMART Hard Disks Status OK

Partitions:
C: (NTFS) 54266 MB (46033 MB free)
D: (FAT32) 2951 MB (1724 MB free)
Total Size 55.9 GB (46.6 GB free)

Input:
Keyboard Standard 101/102-Key or Microsoft Natural PS/2 Keyboard
Mouse PS/2 Compatible Mouse

Network:
Network Adapter Broadcom 440x 10/100 Integrated Controller (192.168.1.105)
Modem Conexant SoftK56 Data Fax Modem

Peripherals:
Printer Microsoft XPS Document Writer
USB1 Controller NEC uPD720101 USB OpenHCI Controller
USB1 Controller NEC uPD720101 USB OpenHCI Controller
USB2 Controller NEC uPD720101 USB 2.0 Enhanced Host Controller (v1.0)
Battery Microsoft AC Adapter
Battery Microsoft ACPI-Compliant Control Method Battery


--------[ DMI ]---------------------------------------------------------------------------------------------------------

[ BIOS ]

BIOS Properties:
Vendor Phoenix
Version 0010
Release Date 09/07/2003
Size 512 KB
Boot Devices Floppy Disk, Hard Disk, CD-ROM
Capabilities Flash BIOS, Shadow BIOS, Selectable Boot, BBS, Smart Battery
Supported Standards DMI, APM, ACPI, ESCD, PnP
Expansion Capabilities ISA, PCI, AGP, PCMCIA, USB

[ System ]

System Properties:
Manufacturer eMachines. Inc.
Product M5300 Series.
Version 0010
Serial Number N703B 500 02995
Universal Unique ID 808D56C7-4F640010-96A9050E-001112CB
Wake-Up Type Power Switch

[ Motherboard ]

Motherboard Properties:
Manufacturer Arima
Product W720K7
Version KBC Revision: 1913
Serial Number None

[ Chassis ]

Chassis Properties:
Manufacturer Arima
Version N/A
Serial Number None
Chassis Type Notebook

[ Processors / Mobile AMD Athlon™ XP processor 2400+ ]

Processor Properties:
Manufacturer AuthenticAMD
Version Mobile AMD Athlon™ XP processor 2400+
External Clock 133 MHz
Maximum Clock 1800 MHz
Current Clock 1800 MHz
Type Central Processor
Voltage 1.4 V
Status Enabled
Upgrade ZIF
Socket Designation U23

[ Caches / L1 Cache ]

Cache Properties:
Type Internal
Status Enabled
Operational Mode Write-Back
Associativity 4-way Set-Associative
Maximum Size 128 KB
Installed Size 128 KB
Supported SRAM Type Burst, Pipeline Burst
Current SRAM Type Synchronous
Error Correction Parity
Socket Designation L1 Cache

[ Caches / L2 Cache ]

Cache Properties:
Type Internal
Status Enabled
Operational Mode Write-Back
Maximum Size 512 KB
Installed Size 512 KB
Supported SRAM Type Burst, Pipeline Burst
Current SRAM Type Synchronous
Socket Designation L2 Cache

[ Memory Devices / U5 ]

Memory Device Properties:
Form Factor DIMM
Type DRAM
Type Detail Synchronous
Size 256 MB
Speed 266 MHz
Total Width 64-bit
Data Width 64-bit
Device Locator U5
Bank Locator Bank 0

[ Memory Devices / U6 ]

Memory Device Properties:
Form Factor DIMM
Type DRAM
Type Detail Synchronous
Size 256 MB
Speed 266 MHz
Total Width 64-bit
Data Width 64-bit
Device Locator U6
Bank Locator Bank 1

[ Memory Devices / System Board ]

Memory Device Properties:
Form Factor Chip
Type FLASH
Type Detail Non-volatile
Size 512 KB
Speed 8 MHz
Total Width 16-bit
Data Width 16-bit
Device Locator System Board
Bank Locator Null


--------[ Overclock ]---------------------------------------------------------------------------------------------------

CPU Properties:
CPU Type Mobile AMD Athlon XP
CPU Alias Barton
CPU Stepping A2
CPUID CPU Name Mobile AMD Athlon™ XP 2400+
CPUID Revision 000006A0h

CPU Speed:
CPU Clock 530.00 MHz
CPU Multiplier 4.0x
CPU FSB 132.50 MHz

CPU Cache:
L1 Code Cache 64 KB
L1 Data Cache 64 KB
L2 Cache 512 KB (On-Die, Full-Speed)

Motherboard Properties:
Motherboard ID <DMI>
Motherboard Name Arima W720K7

Chipset Properties:
Motherboard Chipset ATI Radeon IGP-320M
Memory Timings 2.5-3-3-? (CL-RCD-RP-RAS)

SPD Memory Modules:
DIMM1: Samsung M4 70L3224DT0-CB0 256 MB PC2100 DDR SDRAM (2.5-3-3-6 @ 133 MHz) (2.0-2-2-5 @ 100 MHz)
DIMM2: Samsung M4 70L3224DT0-CB0 256 MB PC2100 DDR SDRAM (2.5-3-3-6 @ 133 MHz) (2.0-2-2-5 @ 100 MHz)

BIOS Properties:
System BIOS Date 09/07/03
Video BIOS Date 03/09/05
DMI BIOS Version 0010


--------[ Power Management ]--------------------------------------------------------------------------------------------

Power Management Properties:
Current Power Source AC Line
Battery Status 0 % (Low Level)
Full Battery Lifetime Unknown
Remaining Battery Lifetime Unknown


--------[ Sensor ]------------------------------------------------------------------------------------------------------

Sensor Properties:
Sensor Type HDD

Temperatures:
CPU 59 C (138 F)
TOSHIBA MK6025GAS 48 C (118 F)


--------[ CPU ]---------------------------------------------------------------------------------------------------------

CPU Properties:
CPU Type Mobile AMD Athlon XP, 1789 MHz (13.5 x 133)
CPU Alias Barton
CPU Stepping A2
Instruction Set x86, MMX, 3DNow!, SSE
L1 Code Cache 64 KB
L1 Data Cache 64 KB
L2 Cache 512 KB (On-Die, Full-Speed)

CPU Manufacturer:
Company Name Advanced Micro Devices, Inc.
Product Information http://www.amd.com/u...,30_118,00.html

CPU Utilization:
CPU #1 0 %


--------[ CPUID ]-------------------------------------------------------------------------------------------------------

CPUID Properties:
CPUID Manufacturer AuthenticAMD
CPUID CPU Name Mobile AMD Athlon™ XP 2400+
CPUID Revision 000006A0h
Extended CPUID Revision 000007A0h
Platform ID CBh (Socket A)
IA CPU Serial Number Unknown
HTT / CMP Units 0 / 0

Instruction Set:
64-bit x86 Extension (AMD64, EM64T) Not Supported
Alternate Instruction Set Not Supported
AMD 3DNow! Supported
AMD 3DNow! Professional Supported
AMD Enhanced 3DNow! Supported
AMD Extended MMX Supported
Cyrix Extended MMX Not Supported
IA-64 Not Supported
IA MMX Supported
IA SSE Supported
IA SSE 2 Not Supported
IA SSE 3 Not Supported
CLFLUSH Instruction Not Supported
CMPXCHG8B Instruction Supported
CMPXCHG16B Instruction Not Supported
Conditional Move Instruction Supported
MONITOR / MWAIT Instruction Not Supported
RDTSCP Instruction Not Supported
SYSCALL / SYSRET Instruction Supported
SYSENTER / SYSEXIT Instruction Supported
VIA FEMMS Instruction Not Supported

Security Features:
Advanced Cryptography Engine (ACE) Not Supported
Data Execution Prevention (DEP, NX, EDB) Not Supported
Hardware Random Number Generator (RNG) Not Supported
Montgomery Multiplier & Hash Engine Not Supported
Processor Serial Number (PSN) Not Supported

Power Management Features:
Automatic Clock Control Not Supported
Enhanced Halt State (C1E) Not Supported
Enhanced SpeedStep Technology (EIST, ESS) Not Supported
Frequency ID Control Supported
LongRun Not Supported
LongRun Table Interface Not Supported
PowerSaver 1.0 Not Supported
PowerSaver 2.0 Not Supported
PowerSaver 3.0 Not Supported
Processor Duty Cycle Control Not Supported
Software Thermal Control Not Supported
Temperature Sensing Diode Supported
Thermal Monitor 1 Not Supported
Thermal Monitor 2 Not Supported
Thermal Monitoring Not Supported
Thermal Trip Not Supported
Voltage ID Control Supported

CPUID Features:
36-bit Page Size Extension Supported
Address Region Registers (ARR) Not Supported
CPL Qualified Debug Store Not Supported
Debug Trace Store Not Supported
Debugging Extension Supported
Fast Save & Restore Supported
Hyper-Threading Technology (HTT) Not Supported
L1 Context ID Not Supported
Local APIC On Chip Not Supported
Machine Check Architecture (MCA) Supported
Machine Check Exception (MCE) Supported
Memory Configuration Registers (MCR) Not Supported
Memory Type Range Registers (MTRR) Supported
Model Specific Registers (MSR) Supported
Page Attribute Table (PAT) Supported
Page Global Extension Supported
Page Size Extension (PSE) Supported
Pending Break Event Not Supported
Physical Address Extension (PAE) Supported
Secure Virtual Machine Extensions (Pacifica) Not Supported
Self-Snoop Not Supported
Time Stamp Counter (TSC) Supported
Virtual Machine Extensions (Vanderpool) Not Supported
Virtual Mode Extension Supported

CPUID Registers (CPU #1):
CPUID 00000000 00000001-68747541-444D4163-69746E65
CPUID 00000001 000006A0-00000000-00000000-0383F9FF
CPUID 80000000 80000008-68747541-444D4163-69746E65
CPUID 80000001 000007A0-00000000-00000000-C1CBF9FF
CPUID 80000002 69626F4D-4120656C-4120444D-6F6C6874
CPUID 80000003 6D74286E-50582029-30343220-00002B30
CPUID 80000004 00000000-00000000-00000000-00000000
CPUID 80000005 0408FF08-FF20FF10-40020140-40020140
CPUID 80000006 00000000-41004100-02008140-00000000
CPUID 80000007 00000000-00000000-00000000-00000007
CPUID 80000008 00002022-00000000-00000000-00000000

MSR Registers:
MSR C0010015 0000-0000-0603-1000
MSR C0010042 000B-0B0B-0015-0615


--------[ Motherboard ]-------------------------------------------------------------------------------------------------

Motherboard Properties:
Motherboard ID <DMI>
Motherboard Name Arima W720K7

Front Side Bus Properties:
Bus Type DEC Alpha EV6
Bus Width 64-bit
Real Clock 133 MHz (DDR)
Effective Clock 265 MHz
Bandwidth 2120 MB/s


--------[ Memory ]------------------------------------------------------------------------------------------------------

Physical Memory:
Total 447 MB
Used 398 MB
Free 48 MB
Utilization 89 %

Swap Space:
Total 1054 MB
Used 480 MB
Free 573 MB
Utilization 46 %

Virtual Memory:
Total 1502 MB
Used 879 MB
Free 622 MB
Utilization 59 %

Physical Address Extension (PAE):
Supported by Operating System Yes
Supported by CPU Yes
Active No

Problems & Suggestions:
Suggestion Install more system memory to improve applications performance.


--------[ SPD ]---------------------------------------------------------------------------------------------------------

[ DIMM1: Samsung M4 70L3224DT0-CB0 ]

Memory Module Properties:
Module Name Samsung M4 70L3224DT0-CB0
Serial Number 410E8936h
Module Size 256 MB (2 ranks, 4 banks)
Module Type Unbuffered
Memory Type DDR SDRAM
Memory Speed PC2100 (133 MHz)
Module Width 64 bit
Module Voltage SSTL 2.5
Error Detection Method None
Refresh Rate Reduced (7.8 us), Self-Refresh

Memory Timings:
@ 133 MHz 2.5-3-3-6 (CL-RCD-RP-RAS)
@ 100 MHz 2.0-2-2-5 (CL-RCD-RP-RAS)

Memory Module Features:
Early RAS# Precharge Not Supported
Auto-Precharge Not Supported
Precharge All Not Supported
Write1/Read Burst Not Supported
Buffered Address/Control Inputs Not Supported
Registered Address/Control Inputs Not Supported
On-Card PLL (Clock) Not Supported
Buffered DQMB Inputs Not Supported
Registered DQMB Inputs Not Supported
Differential Clock Input Supported
Redundant Row Address Not Supported

Memory Module Manufacturer:
Company Name Samsung
Product Information http://www.samsung.c.../DRAM/index.htm

[ DIMM2: Samsung M4 70L3224DT0-CB0 ]

Memory Module Properties:
Module Name Samsung M4 70L3224DT0-CB0
Serial Number 41058950h
Module Size 256 MB (2 ranks, 4 banks)
Module Type Unbuffered
Memory Type DDR SDRAM
Memory Speed PC2100 (133 MHz)
Module Width 64 bit
Module Voltage SSTL 2.5
Error Detection Method None
Refresh Rate Reduced (7.8 us), Self-Refresh

Memory Timings:
@ 133 MHz 2.5-3-3-6 (CL-RCD-RP-RAS)
@ 100 MHz 2.0-2-2-5 (CL-RCD-RP-RAS)

Memory Module Features:
Early RAS# Precharge Not Supported
Auto-Precharge Not Supported
Precharge All Not Supported
Write1/Read Burst Not Supported
Buffered Address/Control Inputs Not Supported
Registered Address/Control Inputs Not Supported
On-Card PLL (Clock) Not Supported
Buffered DQMB Inputs Not Supported
Registered DQMB Inputs Not Supported
Differential Clock Input Supported
Redundant Row Address Not Supported

Memory Module Manufacturer:
Company Name Samsung
Product Information http://www.samsung.c.../DRAM/index.htm


--------[ Chipset ]-----------------------------------------------------------------------------------------------------

[ North Bridge: ATI Radeon IGP-320M ]

North Bridge Properties:
North Bridge ATI Radeon IGP-320M

Memory Timings:
CAS Latency (CL) 2.5T
RAS To CAS Delay (tRCD) 3T
RAS Precharge (tRP) 3T

Memory Slots:
DRAM Slot #1 256 MB (PC2100 DDR SDRAM)
DRAM Slot #2 256 MB (PC2100 DDR SDRAM)

Integrated Graphics Controller:
Graphics Controller Type ATI U1
Graphics Controller Status Enabled
Graphics Frame Buffer Size 64 MB

AGP Controller:
AGP Version 2.00
AGP Status Enabled
AGP Device ATI Radeon IGP-320M (U1)
AGP Aperture Size 64 MB
Supported AGP Speeds 1x, 2x, 4x
Fast-Write Supported, Disabled
Side Band Addressing Supported, Disabled

Chipset Manufacturer:
Company Name ATI Technologies Inc.
Product Information http://www.ati.com/p...integrated.html
Driver Download http://www.ati.com/support/driver.html

[ South Bridge: ULi/ALi M1533/1535/1543 ]

South Bridge Properties:
South Bridge ULi/ALi M1533/1535/1543
Revision 00

AC'97 Audio Controller:
Audio Controller Type ULi/ALi M5451
Codec Name Analog Devices AD1981B(L)
Codec ID 41445374h
S/PDIF Output Supported

Chipset Manufacturer:
Company Name ATI Technologies Inc.
Product Information http://www.ati.com/p...integrated.html
Driver Download http://www.ati.com/support/driver.html


--------[ BIOS ]--------------------------------------------------------------------------------------------------------

BIOS Properties:
BIOS Type Phoenix
System BIOS Date 09/07/03
Video BIOS Date 03/09/05

BIOS Manufacturer:
Company Name Phoenix Technologies Ltd.
Product Information http://www.phoenix.c...cts/default.htm
BIOS Upgrades http://www.esupport....fm?refererid=40

Problems & Suggestions:
Suggestion Are you looking for a BIOS Upgrade? Contact eSupport Today!
Suggestion System BIOS is more than 2 years old. Update it if necessary.
Suggestion Video BIOS is more than 2 years old. Update it if necessary.


--------[ Windows Video ]-----------------------------------------------------------------------------------------------

[ RADEON IGP 320M ]

Video Adapter Properties:
Device Description RADEON IGP 320M
Adapter String RADEON IGP 320M
BIOS String BK5.0.0 VR001.000.007.007.018.000.001.001 c
Chip Type Mobility Radeon 9200 (0x4336)
DAC Type Internal DAC(350MHz)
Installed Drivers ati2dvag (6.14.10.6351)
Memory Size 64 MB

Video Adapter Manufacturer:
Company Name ATI Technologies Inc.
Product Information http://www.ati.com/products/gamer.html
Driver Download http://www.ati.com/support/driver.html

[ RADEON IGP 320M ]

Video Adapter Properties:
Device Description RADEON IGP 320M
Adapter String RADEON IGP 320M
BIOS String BK5.0.0 VR001.000.007.007.018.000.001.001 c
Chip Type Mobility Radeon 9200 (0x4336)
DAC Type Internal DAC(350MHz)
Installed Drivers ati2dvag (6.14.10.6351)
Memory Size 64 MB

Video Adapter Manufacturer:
Company Name ATI Technologies Inc.
Product Information http://www.ati.com/products/gamer.html
Driver Download http://www.ati.com/support/driver.html


--------[ PCI / AGP Video ]---------------------------------------------------------------------------------------------

ATI Radeon IGP-320M (U1) Video Adapter
ATI Radeon IGP-320M (U1) 3D Accelerator


--------[ Desktop ]-----------------------------------------------------------------------------------------------------

Desktop Properties:
Device Technology Raster Display
Resolution 1280 x 800
Color Depth 32-bit
Color Planes 1
Font Resolution 96 dpi
Pixel Width / Height 36 / 36
Pixel Diagonal 51
Vertical Refresh Rate 60 Hz
Desktop Wallpaper C:\WINDOWS\web\wallpaper\Bliss.bmp

Desktop Effects:
Combo-Box Animation Enabled
Drop Shadow Effect Enabled
Flat Menu Effect Enabled
Font Smoothing Enabled
Full Window Dragging Enabled
Gradient Window Title Bars Enabled
Hide Menu Access Keys Enabled
Hot Tracking Effect Enabled
Icon Title Wrapping Enabled
List-Box Smooth Scrolling Enabled
Menu Animation Enabled
Menu Fade Effect Enabled
Minimize/Restore Animation Enabled
Mouse Cursor Shadow Enabled
Selection Fade Effect Enabled
ShowSounds Accessibility Feature Disabled
ToolTip Animation Enabled
ToolTip Fade Effect Enabled
Windows Plus! Extension Disabled


--------[ Multi-Monitor ]-----------------------------------------------------------------------------------------------

\\.\DISPLAY1 Yes (0,0) (1280,800)


--------[ PCI / PnP Audio ]---------------------------------------------------------------------------------------------

ULi/ALi M5451 AC-Link Controller Audio Device PCI


--------[ Windows Storage ]---------------------------------------------------------------------------------------------

[ TOSHIBA MK6025GAS ]

Device Properties:
Driver Description TOSHIBA MK6025GAS
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File disk.inf

Disk Device Physical Info:
Manufacturer Toshiba
Hard Disk Name MK-6025GAS
Form Factor 2.5"
Formatted Capacity 60 GB
Disks 2
Recording Surfaces 4
Physical Dimensions 100 x 69.85 x 9.5 mm
Max. Weight 98 g
Average Rotational Latency 7.14 ms
Rotational Speed 4200 RPM
Max. Internal Data Rate 347.1 Mbit/s
Average Seek 12 ms
Track-To-Track Seek 2 ms
Full Seek 22 ms
Interface Ultra-ATA/100
Buffer-to-Host Data Rate 100 MB/s
Buffer Size 8 MB
Spin-Up Time 4 sec

Device Manufacturer:
Company Name Toshiba Corp., Storage Device Division
Product Information http://www.toshiba.c...ducts/hdd.shtml

[ TOSHIBA DVD-ROM SD-R2312 ]

Device Properties:
Driver Description TOSHIBA DVD-ROM SD-R2312
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File cdrom.inf

Optical Drive Properties:
Manufacturer Toshiba
Device Type DVD-ROM/CD-RW
Interface ATAPI

Writing Speeds:
CD-R 24x
CD-RW 10x

Reading Speeds:
DVD-ROM 8x
CD-ROM 24x

Device Manufacturer:
Company Name Toshiba Corp., Storage Device Division
Product Information http://www.toshiba.c.../products.shtml
Firmware Download http://sdd.toshiba.c...000659C000023EE

[ ALi M5229 PCI Bus Master IDE Controller ]

Device Properties:
Driver Description ALi M5229 PCI Bus Master IDE Controller
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File mshdc.inf

Device Resources:
Port 8080-808F

[ Primary IDE Channel ]

Device Properties:
Driver Description Primary IDE Channel
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File mshdc.inf

Device Resources:
IRQ 14
Port 01F0-01F7
Port 03F6-03F6

[ Secondary IDE Channel ]

Device Properties:
Driver Description Secondary IDE Channel
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File mshdc.inf

Device Resources:
IRQ 15
Port 0170-0177
Port 0376-0376


--------[ Logical Drives ]----------------------------------------------------------------------------------------------

C: Local Disk NTFS 54266 MB 8233 MB 46033 MB 85 % 88F5-964A
D: (RECOVERY) Local Disk FAT32 2951 MB 1226 MB 1724 MB 58 % 2B05-0C97
E: Optical Drive


--------[ Physical Drives ]---------------------------------------------------------------------------------------------

[ Drive #1 - TOSHIBA MK6025GAS (55 GB) ]

#1 (Active) NTFS C: 2957 MB 54266 MB
#2 FAT32 D: (RECOVERY) 0 MB 2957 MB


--------[ Optical Drives ]----------------------------------------------------------------------------------------------

[ TOSHIBA DVD-ROM SD-R2312 ]

Optical Drive Properties:
Device Description TOSHIBA DVD-ROM SD-R2312
Manufacturer Toshiba
Device Type DVD-ROM/CD-RW
Interface ATAPI

Writing Speeds:
CD-R 24x
CD-RW 10x

Reading Speeds:
DVD-ROM 8x
CD-ROM 24x

Device Manufacturer:
Company Name Toshiba Corp., Storage Device Division
Product Information http://www.toshiba.c.../products.shtml
Firmware Download http://sdd.toshiba.c...000659C000023EE


--------[ ASPI ]--------------------------------------------------------------------------------------------------------

00 00 00 Disk Drive TOSHIBA MK6025GAS
00 07 00 Host Adapter atapi
01 00 00 Optical Drive TOSHIBA DVD-ROM SD-R2312
01 07 00 Host Adapter atapi


--------[ ATA ]---------------------------------------------------------------------------------------------------------

[ TOSHIBA MK6025GAS (45CN4876T) ]

ATA Device Properties:
Model ID TOSHIBA MK6025GAS
Serial Number 45CN4876T
Revision KA200A
Parameters 116280 cylinders, 16 heads, 63 sectors per track, 512 bytes per sector
LBA Sectors 117210240
Buffer Unknown
Multiple Sectors 16
ECC Bytes 48
Max. PIO Transfer Mode PIO 4
Max. UDMA Transfer Mode UDMA 5 (ATA-100)
Active UDMA Transfer Mode UDMA 5 (ATA-100)
Unformatted Capacity 57232 MB

ATA Device Features:
SMART Supported
Security Mode Supported
Power Management Supported
Advanced Power Management Supported
Write Cache Supported
Host Protected Area Supported
Power-Up In Standby Not Supported
Automatic Acoustic Management Not Supported
48-bit LBA Not Supported
Device Configuration Overlay Supported

ATA Device Physical Info:
Manufacturer Toshiba
Hard Disk Name MK-6025GAS
Form Factor 2.5"
Formatted Capacity 60 GB
Disks 2
Recording Surfaces 4
Physical Dimensions 100 x 69.85 x 9.5 mm
Max. Weight 98 g
Average Rotational Latency 7.14 ms
Rotational Speed 4200 RPM
Max. Internal Data Rate 347.1 Mbit/s
Average Seek 12 ms
Track-To-Track Seek 2 ms
Full Seek 22 ms
Interface Ultra-ATA/100
Buffer-to-Host Data Rate 100 MB/s
Buffer Size 8 MB
Spin-Up Time 4 sec

ATA Device Manufacturer:
Company Name Toshiba Corp., Storage Device Division
Product Information http://www.toshiba.c...ducts/hdd.shtml


--------[ SMART ]-------------------------------------------------------------------------------------------------------

[ TOSHIBA MK6025GAS (45CN4876T) ]

01 Raw Read Error Rate 50 100 100 0 OK: Value is normal
02 Throughput Performance 50 100 100 0 OK: Value is normal
03 Spin Up Time 1 100 100 1107 OK: Value is normal
04 Start/Stop Count 0 100 100 2642 OK: Always passing
05 Reallocated Sector Count 50 100 100 0 OK: Value is normal
07 Seek Error Rate 50 100 100 0 OK: Value is normal
08 Seek Time Performance 50 100 100 0 OK: Value is normal
09 Power-On Time Count 0 82 82 7519 OK: Always passing
0A Spin Retry Count 30 152 100 0 OK: Value is normal
0C Power Cycle Count 0 100 100 2571 OK: Always passing
C0 Power-Off Retract Count 0 100 100 416 OK: Always passing
C1 Load/Unload Cycle Count 0 95 95 57676 OK: Always passing
C2 Temperature 0 100 100 19, 48 OK: Always passing
C4 Reallocation Event Count 0 100 100 0 OK: Always passing
C5 Current Pending Sector Count 0 100 100 0 OK: Always passing
C6 Off-Line Uncorrectable Sector Count 0 100 100 0 OK: Always passing
C7 Ultra ATA CRC Error Rate 0 200 200 0 OK: Always passing
DC Disk Shift 0 100 100 34 OK: Always passing
DE Loaded Hours 0 85 85 6386 OK: Always passing
DF Load Retry Count 0 100 100 0 OK: Always passing
E0 Load Friction 0 100 100 0 OK: Always passing
E2 Load-In Time 0 100 100 218 OK: Always passing
F0 Head Flying Hours 1 100 100 0 OK: Value is normal


--------[ Windows Network ]---------------------------------------------------------------------------------------------

[ Broadcom 440x 10/100 Integrated Controller ]

Network Adapter Properties:
Network Adapter Broadcom 440x 10/100 Integrated Controller
Interface Type Ethernet
Hardware Address 00-03-25-0B-C0-C7
Connection Name Local Area Connection
Connection Speed 100 Mbps
MTU 1500 bytes
DHCP Lease Obtained 12/30/2009 10:11:49 AM
DHCP Lease Expires 12/31/2009 10:11:49 AM
Bytes Received 7013772 (6.7 MB)
Bytes Sent 466301 (455.4 KB)

Network Adapter Addresses:
IP / Subnet Mask 192.168.1.105 / 255.255.255.0
Gateway 192.168.1.1
DHCP 192.168.1.1
DNS 76.14.0.8
DNS 76.14.0.9

Network Adapter Manufacturer:
Company Name Broadcom Corporation
Product Information http://www.broadcom.com/products
Driver Download http://www.broadcom....loaddrivers.php


--------[ PCI / PnP Network ]-------------------------------------------------------------------------------------------

Broadcom 802.11g Wireless Network Adapter PCI
Broadcom NetXtreme BCM4401-A1 Integrated Fast Ethernet Controller PCI


--------[ DirectX Video ]-----------------------------------------------------------------------------------------------

[ Primary Display Driver ]

DirectDraw Device Properties:
DirectDraw Driver Name display
DirectDraw Driver Description Primary Display Driver
Hardware Driver ati2dvag.dll
Hardware Description RADEON IGP 320M

Direct3D Device Properties:
Available Local Video Memory 60784 KB
Available Non-Local Video Memory (AGP) 0 KB
Rendering Bit Depths 16, 32
Z-Buffer Bit Depths 16, 24
Min Texture Size 1 x 1
Max Texture Size 2048 x 2048
Vertex Shader Version 1.1
Pixel Shader Version Not Supported

Direct3D Device Features:
Additive Texture Blending Supported
AGP Texturing Not Supported
Anisotropic Filtering Supported
Bilinear Filtering Supported
Cubic Environment Mapping Supported
Cubic Filtering Not Supported
Decal-Alpha Texture Blending Supported
Decal Texture Blending Supported
Directional Lights Supported
DirectX Texture Compression Supported
DirectX Volumetric Texture Compression Not Supported
Dithering Supported
Dot3 Texture Blending Supported
Dynamic Textures Not Supported
Edge Antialiasing Not Supported
Environmental Bump Mapping Supported
Environmental Bump Mapping + Luminance Not Supported
Factor Alpha Blending Supported
Geometric Hidden-Surface Removal Not Supported
Guard Band Supported
Hardware Scene Rasterization Supported
Hardware Transform & Lighting Supported
Legacy Depth Bias Supported
Mipmap LOD Bias Adjustments Supported
Mipmapped Cube Textures Not Supported
Mipmapped Volume Textures Not Supported
Modulate-Alpha Texture Blending Supported
Modulate Texture Blending Supported
Non-Square Textures Supported
N-Patches Not Supported
Perspective Texture Correction Supported
Point Lights Supported
Point Sampling Supported
Projective Textures Supported
Quintic Bezier Curves & B-Splines Not Supported
Range-Based Fog Supported
Rectangular & Triangular Patches Not Supported
Rendering In Windowed Mode Supported
Scissor Test Supported
Slope-Scale Based Depth Bias Supported
Specular Flat Shading Supported
Specular Gouraud Shading Supported
Specular Phong Shading Not Supported
Spherical Mapping Not Supported
Spot Lights Supported
Stencil Buffers Supported
Sub-Pixel Accuracy Supported
Table Fog Not Supported
Texture Alpha Blending Supported
Texture Clamping Supported
Texture Mirroring Supported
Texture Transparency Supported
Texture Wrapping Supported
Triangle Culling Not Supported
Trilinear Filtering Supported
Two-Sided Stencil Test Not Supported
Vertex Alpha Blending Supported
Vertex Fog Supported
Vertex Tweening Supported
Volume Textures Supported
W-Based Fog Not Supported
W-Buffering Not Supported
Z-Based Fog Not Supported
Z-Bias Supported
Z-Test Supported

Supported FourCC Codes:
DXT1 Supported
DXT2 Supported
DXT3 Supported
DXT4 Supported
DXT5 Supported
IF09 Supported
IMC4 Supported
M2IA Supported
UYVY Supported
VBID Supported
YUY2 Supported
YV12 Supported
YVU9 Supported


--------[ DirectX Sound ]-----------------------------------------------------------------------------------------------

[ Primary Sound Driver ]

DirectSound Device Properties:
Device Description Primary Sound Driver
Driver Module
Primary Buffers 0
Min / Max Secondary Buffers Sample Rate 0 / 0 Hz
Primary Buffers Sound Formats None
Secondary Buffers Sound Formats None
Total / Free Sound Buffers 0 / 0
Total / Free Static Sound Buffers 0 / 0
Total / Free Streaming Sound Buffers 0 / 0
Total / Free 3D Sound Buffers 0 / 0
Total / Free 3D Static Sound Buffers 0 / 0
Total / Free 3D Streaming Sound Buffers 0 / 0

DirectSound Device Features:
Certified Driver No
Emulated Device No
Precise Sample Rate Not Supported
DirectSound3D Not Supported
Creative EAX 1.0 Not Supported
Creative EAX 2.0 Not Supported
Creative EAX 3.0 Not Supported


--------[ DirectX Music ]-----------------------------------------------------------------------------------------------

[ Microsoft Synthesizer ]

DirectMusic Device Properties:
Device Description Microsoft Synthesizer
Synthesizer Type Software
Device Class Output Port
Device Type User-Mode Synthesizer
Audio Channels 2
MIDI Channels 16000
Voices 1000
Available Memory System Memory

DirectMusic Device Features:
Built-In GM Instrument Set No
Built-In Roland GS Sound Set No
DirectSound Supported
DLS L1 Sample Collections Supported
DLS L2 Sample Collections Supported
External MIDI Port No
Fixed DLS Memory Size No
Port Sharing Not Supported
Chorus Effect Not Supported
Delay Effect Not Supported
Reverb Effect Supported


--------[ DirectX Input ]-----------------------------------------------------------------------------------------------

[ Mouse ]

DirectInput Device Properties:
Device Description Mouse
Device Type Unknown
Device Subtype Unknown
Axes 3
Buttons/Keys 3

DirectInput Device Features:
Emulated Device Yes
Alias Device No
Polled Device No
Polled Data Format No
Attack Force Feedback Not Supported
Deadband Force Feedback Not Supported
Fade Force Feedback Not Supported
Force Feedback Not Supported
Saturation Force Feedback Not Supported
+/- Force Feedback Coefficients Not Supported
+/- Force Feedback Saturation Not Supported

[ Keyboard ]

DirectInput Device Properties:
Device Description Keyboard
Device Type Unknown
Device Subtype Unknown
Buttons/Keys 128

DirectInput Device Features:
Emulated Device Yes
Alias Device No
Polled Device No
Polled Data Format No
Attack Force Feedback Not Supported
Deadband Force Feedback Not Supported
Fade Force Feedback Not Supported
Force Feedback Not Supported
Saturation Force Feedback Not Supported
+/- Force Feedback Coefficients Not Supported
+/- Force Feedback Saturation Not Supported


--------[ Windows Devices ]---------------------------------------------------------------------------------------------

[ Devices ]

Batteries:
Microsoft AC Adapter 5.1.2535.0
Microsoft ACPI-Compliant Control Method Battery 5.1.2535.0

Computer:
Advanced Configuration and Power Interface (ACPI) PC5.1.2600.0

Disk drives:
TOSHIBA MK6025GAS 5.1.2535.0

Display adapters:
RADEON IGP 320M 6.14.10.6351

DVD/CD-ROM drives:
TOSHIBA DVD-ROM SD-R2312 5.1.2535.0

IDE ATA/ATAPI controllers:
ALi M5229 PCI Bus Master IDE Controller 5.1.2600.2180
Primary IDE Channel 5.1.2600.2180
Secondary IDE Channel 5.1.2600.2180

IEEE 1394 Bus host controllers:
Texas Instruments OHCI Compliant IEEE 1394 Host Controller5.1.2535.0

Keyboards:
Standard 101/102-Key or Microsoft Natural PS/2 Keyboard5.1.2600.2180

Mice and other pointing devices:
PS/2 Compatible Mouse 5.1.2600.0

Modems:
Conexant SoftK56 Data Fax Modem 6.1.16.0

Monitors:
Default Monitor 5.1.2001.0
Default Monitor 5.1.2001.0
Plug and Play Monitor 5.1.2001.0

Network adapters:
1394 Net Adapter 5.1.2535.0
Broadcom 440x 10/100 Integrated Controller 3.51.0.0
Broadcom 440x 10/100 Integrated Controller - Packet Scheduler Miniport5.1.2535.0
Direct Parallel 5.1.2535.0
WAN Miniport (IP) 5.1.2535.0
WAN Miniport (IP) - Packet Scheduler Miniport 5.1.2535.0
WAN Miniport (L2TP) 5.1.2535.0
WAN Miniport (PPPOE) 5.1.2535.0
WAN Miniport (PPTP) 5.1.2535.0

Non-Plug and Play Drivers:
1394 ARP Client Protocol
abp480n5
adpu160m
AFD
Aha154x
aic78u2
aic78xx
ALI AGP Bus Filter
AMD AGP Bus Filter Driver
amsint
asc
asc3350p
asc3550
aswRdr
avast! Asynchronous Virus Monitor
avast! Network Shield Support
avast! Self Protection
Beep
cbidf
cd20xrnt
CmdIde
Compaq AGP Bus Filter
Cpqarray
dac2w2k
dac960nt
dpti2o
Fips
Generic Packet Classifier
hpn
HTTP
i2omgmt
i2omp
ini910u
Intel AGP Bus Filter
IntelIde
IP Network Address Translator
IPSEC driver
KSecDD
mdmxsdk
mnmdd
MountMgr
mraid35x
NDIS System Driver
NDIS Usermode I/O Protocol
NDProxy
NetBios over Tcpip
Null
PartMgr
PCIIde
perc2
perc2hib
ql1080
Ql10wnt
ql12160
ql1240
ql1280
RDPCDD
Remote Access Auto Connection Driver
Remote Access IP ARP Driver
SIS AGP Bus Filter
Sparrow
StreamDispatcher
sym_hi
sym_u3
symc810
symc8xx
TCP/IP Protocol Driver
TosIde
ultra
VgaSave
VIA AGP Bus Filter
ViaIde
VolSnap

PCMCIA adapters:
Texas Instruments PCI-4410 CardBus Controller 5.1.2600.0

Ports (COM & LPT):
ECP Printer Port (LPT1) 5.1.2600.0

Processors:
Mobile AMD Athlon™ XP 2400+ 5.1.2600.0

Sound, video and game controllers:
ALi Audio Accelerator WDM driver 5.12.1.6003
Audio Codecs 5.1.2535.0
Legacy Audio Drivers 5.1.2535.0
Legacy Video Capture Devices 5.1.2535.0
Media Control Devices 5.1.2535.0
Standard Game Port 5.0.0.0
Video Codecs 5.1.2535.0

Storage volumes:
Generic volume 5.1.2600.0
Generic volume 5.1.2600.0

System devices:
ACPI Fixed Feature Button 5.1.2600.2180
ACPI Lid 5.1.2600.2180
ACPI Power Button 5.1.2600.2180
ACPI Sleep Button 5.1.2600.2180
ACPI Thermal Zone 5.1.2600.2180
ALi 7101 Power Management Controller 5.1.2600.2180
ALi PCI to ISA bridge 5.1.2600.2180
Direct memory access controller 5.1.2600.2180
Generic Bus 5.1.2600.2180
ISAPNP Read Data Port 5.1.2600.2180
Microcode Update Device 5.1.2600.2180
Microsoft ACPI-Compliant Embedded Controller 5.1.2535.0
Microsoft ACPI-Compliant System 5.1.2535.0
Microsoft Composite Battery 5.1.2535.0
Microsoft System Management BIOS Driver 5.1.2600.2180
Motherboard resources 5.1.2600.2180
Numeric data processor 5.1.2600.2180
PCI bus 5.1.2600.2180
PCI standard host CPU bridge 5.1.2600.2180
PCI standard PCI-to-PCI bridge 5.1.2600.2180
Plug and Play Software Device Enumerator 5.1.2600.2180
Printer Port Logical Interface 5.1.2600.2180
Programmable interrupt controller 5.1.2600.2180
System board 5.1.2600.2180
System CMOS/real time clock 5.1.2600.2180
System speaker 5.1.2600.2180
System timer 5.1.2600.2180
Terminal Server Keyboard Driver 5.1.2600.2180
Terminal Server Mouse Driver 5.1.2600.2180
Volume Manager 5.1.2600.2180

Universal Serial Bus controllers:
NEC PCI to USB Open Host Controller 5.1.2600.2180
NEC PCI to USB Open Host Controller 5.1.2600.2180
Standard Enhanced PCI to USB Host Controller 5.1.2600.0
USB Root Hub 5.1.2600.2180
USB Root Hub 5.1.2600.2180
USB Root Hub 5.1.2600.2180

Unknown:
Network Controller

[ Batteries / Microsoft AC Adapter ]

Device Properties:
Driver Description Microsoft AC Adapter
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File battery.inf
Hardware ID ACPI\ACPI0003

[ Batteries / Microsoft ACPI-Compliant Control Method Battery ]

Device Properties:
Driver Description Microsoft ACPI-Compliant Control Method Battery
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File battery.inf
Hardware ID ACPI\PNP0C0A
PnP Device Control Method Battery

[ Computer / Advanced Configuration and Power Interface (ACPI) PC ]

Device Properties:
Driver Description Advanced Configuration and Power Interface (ACPI) PC
Driver Date 7/1/2001
Driver Version 5.1.2600.0
Driver Provider Microsoft
INF File hal.inf
Hardware ID acpipic_up

[ Disk drives / TOSHIBA MK6025GAS ]

Device Properties:
Driver Description TOSHIBA MK6025GAS
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File disk.inf
Hardware ID IDE\DiskTOSHIBA_MK6025GAS_______________________KA200A__
Location Information 0

[ Display adapters / RADEON IGP 320M ]

Device Properties:
Driver Description RADEON IGP 320M
Driver Date 5/15/2003
Driver Version 6.14.10.6351
Driver Provider ATI Technologies Inc.
INF File oem4.inf
Hardware ID PCI\VEN_1002&DEV_4336&SUBSYS_2029161F&REV_00
Location Information PCI bus 1, device 5, function 0
PCI Device ATI Radeon IGP-320M (U1) Video Adapter

Device Resources:
IRQ 05
Memory 000A0000-000BFFFF
Memory D0100000-D010FFFF
Memory E0000000-EFFFFFFF
Port 03B0-03BB
Port 03C0-03DF
Port 9000-90FF

[ DVD/CD-ROM drives / TOSHIBA DVD-ROM SD-R2312 ]

Device Properties:
Driver Description TOSHIBA DVD-ROM SD-R2312
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File cdrom.inf
Hardware ID IDE\CdRomTOSHIBA_DVD-ROM_SD-R2312________________1008____
Location Information 0

[ IDE ATA/ATAPI controllers / ALi M5229 PCI Bus Master IDE Controller ]

Device Properties:
Driver Description ALi M5229 PCI Bus Master IDE Controller
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File mshdc.inf
Hardware ID PCI\VEN_10B9&DEV_5229&SUBSYS_2029161F&REV_C4
Location Information PCI bus 0, device 16, function 0
PCI Device ULi/ALi M5229 IDE Controller

Device Resources:
Port 8080-808F

[ IDE ATA/ATAPI controllers / Primary IDE Channel ]

Device Properties:
Driver Description Primary IDE Channel
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File mshdc.inf
Hardware ID ALi-5229
Location Information Primary Channel

Device Resources:
IRQ 14
Port 01F0-01F7
Port 03F6-03F6

[ IDE ATA/ATAPI controllers / Secondary IDE Channel ]

Device Properties:
Driver Description Secondary IDE Channel
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File mshdc.inf
Hardware ID ALi-5229
Location Information Secondary Channel

Device Resources:
IRQ 15
Port 0170-0177
Port 0376-0376

[ IEEE 1394 Bus host controllers / Texas Instruments OHCI Compliant IEEE 1394 Host Controller ]

Device Properties:
Driver Description Texas Instruments OHCI Compliant IEEE 1394 Host Controller
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File 1394.inf
Hardware ID PCI\VEN_104C&DEV_8017&SUBSYS_2029161F&REV_02
Location Information PCI bus 0, device 10, function 1
PCI Device Texas Instruments PCI4410A OHCI-Lynx IEEE1394 FireWire Controller

Device Resources:
IRQ 05
Memory D0000000-D0003FFF
Memory D000C000-D000C7FF

[ Keyboards / Standard 101/102-Key or Microsoft Natural PS/2 Keyboard ]

Device Properties:
Driver Description Standard 101/102-Key or Microsoft Natural PS/2 Keyboard
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File keyboard.inf
Hardware ID ACPI\PNP0303
PnP Device 101/102-Key or MS Natural Keyboard

Device Resources:
IRQ 01
Port 0060-0060
Port 0064-0064

[ Mice and other pointing devices / PS/2 Compatible Mouse ]

Device Properties:
Driver Description PS/2 Compatible Mouse
Driver Date 7/1/2001
Driver Version 5.1.2600.0
Driver Provider Microsoft
INF File msmouse.inf
Hardware ID ACPI\SYN0002
PnP Device Synaptics PS/2 Port TouchPad

Device Resources:
IRQ 12

[ Modems / Conexant SoftK56 Data Fax Modem ]

Device Properties:
Driver Description Conexant SoftK56 Data Fax Modem
Driver Date 3/6/2003
Driver Version 6.1.16.0
Driver Provider CXT
INF File oem3.inf
Hardware ID PCI\VEN_10B9&DEV_5457&SUBSYS_2027161F&REV_00
Location Information PCI bus 0, device 9, function 0
PCI Device ULi/ALi M5457 AC'97 Modem Controller

Device Resources:
IRQ 05
Memory D0009000-D0009FFF
Port 8800-88FF

[ Monitors / Default Monitor ]

Device Properties:
Driver Description Default Monitor
Driver Date 6/6/2001
Driver Version 5.1.2001.0
Driver Provider Microsoft
INF File monitor.inf
Hardware ID Monitor\Default_Monitor
Monitor Default

[ Monitors / Default Monitor ]

Device Properties:
Driver Description Default Monitor
Driver Date 6/6/2001
Driver Version 5.1.2001.0
Driver Provider Microsoft
INF File monitor.inf
Hardware ID Monitor\Default_Monitor
Monitor Default

[ Monitors / Plug and Play Monitor ]

Device Properties:
Driver Description Plug and Play Monitor
Driver Date 6/6/2001
Driver Version 5.1.2001.0
Driver Provider Microsoft
INF File monitor.inf
Hardware ID Monitor\MS_0000
Monitor MS

[ Network adapters / 1394 Net Adapter ]

Device Properties:
Driver Description 1394 Net Adapter
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File net1394.inf
Hardware ID V1394\NIC1394

[ Network adapters / Broadcom 440x 10/100 Integrated Controller ]

Device Properties:
Driver Description Broadcom 440x 10/100 Integrated Controller
Driver Date 12/17/2002
Driver Version 3.51.0.0
Driver Provider Broadcom
INF File oem0.inf
Hardware ID PCI\VEN_14E4&DEV_4401&SUBSYS_2029161F&REV_01
Location Information PCI bus 0, device 14, function 0
PCI Device Broadcom NetXtreme BCM4401-A1 Integrated Fast Ethernet Controller

Device Resources:
IRQ 11
Memory D0006000-D0007FFF

[ Network adapters / Broadcom 440x 10/100 Integrated Controller - Packet Scheduler Miniport ]

Device Properties:
Driver Description Broadcom 440x 10/100 Integrated Controller - Packet Scheduler Miniport
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File netpsa.inf
Hardware ID ms_pschedmp

[ Network adapters / Direct Parallel ]

Device Properties:
Driver Description Direct Parallel
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File netrasa.inf
Hardware ID ms_ptiminiport

[ Network adapters / WAN Miniport (IP) ]

Device Properties:
Driver Description WAN Miniport (IP)
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File netrasa.inf
Hardware ID ms_ndiswanip

[ Network adapters / WAN Miniport (IP) - Packet Scheduler Miniport ]

Device Properties:
Driver Description WAN Miniport (IP) - Packet Scheduler Miniport
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File netpsa.inf
Hardware ID ms_pschedmp

[ Network adapters / WAN Miniport (L2TP) ]

Device Properties:
Driver Description WAN Miniport (L2TP)
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File netrasa.inf
Hardware ID ms_l2tpminiport

[ Network adapters / WAN Miniport (PPPOE) ]

Device Properties:
Driver Description WAN Miniport (PPPOE)
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File netrasa.inf
Hardware ID ms_pppoeminiport

[ Network adapters / WAN Miniport (PPTP) ]

Device Properties:
Driver Description WAN Miniport (PPTP)
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File netrasa.inf
Hardware ID ms_pptpminiport

[ Non-Plug and Play Drivers / 1394 ARP Client Protocol ]

Device Properties:
Driver Description 1394 ARP Client Protocol

[ Non-Plug and Play Drivers / abp480n5 ]

Device Properties:
Driver Description abp480n5

[ Non-Plug and Play Drivers / adpu160m ]

Device Properties:
Driver Description adpu160m

[ Non-Plug and Play Drivers / AFD ]

Device Properties:
Driver Description AFD

[ Non-Plug and Play Drivers / Aha154x ]

Device Properties:
Driver Description Aha154x

[ Non-Plug and Play Drivers / aic78u2 ]

Device Properties:
Driver Description aic78u2

[ Non-Plug and Play Drivers / aic78xx ]

Device Properties:
Driver Description aic78xx

[ Non-Plug and Play Drivers / ALI AGP Bus Filter ]

Device Properties:
Driver Description ALI AGP Bus Filter

[ Non-Plug and Play Drivers / AMD AGP Bus Filter Driver ]

Device Properties:
Driver Description AMD AGP Bus Filter Driver

[ Non-Plug and Play Drivers / amsint ]

Device Properties:
Driver Description amsint

[ Non-Plug and Play Drivers / asc ]

Device Properties:
Driver Description asc

[ Non-Plug and Play Drivers / asc3350p ]

Device Properties:
Driver Description asc3350p

[ Non-Plug and Play Drivers / asc3550 ]

Device Properties:
Driver Description asc3550

[ Non-Plug and Play Drivers / aswRdr ]

Device Properties:
Driver Description aswRdr

[ Non-Plug and Play Drivers / avast! Asynchronous Virus Monitor ]

Device Properties:
Driver Description avast! Asynchronous Virus Monitor

[ Non-Plug and Play Drivers / avast! Network Shield Support ]

Device Properties:
Driver Description avast! Network Shield Support

[ Non-Plug and Play Drivers / avast! Self Protection ]

Device Properties:
Driver Description avast! Self Protection

[ Non-Plug and Play Drivers / Beep ]

Device Properties:
Driver Description Beep

[ Non-Plug and Play Drivers / cbidf ]

Device Properties:
Driver Description cbidf

[ Non-Plug and Play Drivers / cd20xrnt ]

Device Properties:
Driver Description cd20xrnt

[ Non-Plug and Play Drivers / CmdIde ]

Device Properties:
Driver Description CmdIde

[ Non-Plug and Play Drivers / Compaq AGP Bus Filter ]

Device Properties:
Driver Description Compaq AGP Bus Filter

[ Non-Plug and Play Drivers / Cpqarray ]

Device Properties:
Driver Description Cpqarray

[ Non-Plug and Play Drivers / dac2w2k ]

Device Properties:
Driver Description dac2w2k

[ Non-Plug and Play Drivers / dac960nt ]

Device Properties:
Driver Description dac960nt

[ Non-Plug and Play Drivers / dpti2o ]

Device Properties:
Driver Description dpti2o

[ Non-Plug and Play Drivers / Fips ]

Device Properties:
Driver Description Fips

[ Non-Plug and Play Drivers / Generic Packet Classifier ]

Device Properties:
Driver Description Generic Packet Classifier

[ Non-Plug and Play Drivers / hpn ]

Device Properties:
Driver Description hpn

[ Non-Plug and Play Drivers / HTTP ]

Device Properties:
Driver Description HTTP

[ Non-Plug and Play Drivers / i2omgmt ]

Device Properties:
Driver Description i2omgmt

[ Non-Plug and Play Drivers / i2omp ]

Device Properties:
Driver Description i2omp

[ Non-Plug and Play Drivers / ini910u ]

Device Properties:
Driver Description ini910u

[ Non-Plug and Play Drivers / Intel AGP Bus Filter ]

Device Properties:
Driver Description Intel AGP Bus Filter

[ Non-Plug and Play Drivers / IntelIde ]

Device Properties:
Driver Description IntelIde

[ Non-Plug and Play Drivers / IP Network Address Translator ]

Device Properties:
Driver Description IP Network Address Translator

[ Non-Plug and Play Drivers / IPSEC driver ]

Device Properties:
Driver Description IPSEC driver

[ Non-Plug and Play Drivers / KSecDD ]

Device Properties:
Driver Description KSecDD

[ Non-Plug and Play Drivers / mdmxsdk ]

Device Properties:
Driver Description mdmxsdk

[ Non-Plug and Play Drivers / mnmdd ]

Device Properties:
Driver Description mnmdd

[ Non-Plug and Play Drivers / MountMgr ]

Device Properties:
Driver Description MountMgr

[ Non-Plug and Play Drivers / mraid35x ]

Device Properties:
Driver Description mraid35x

[ Non-Plug and Play Drivers / NDIS System Driver ]

Device Properties:
Driver Description NDIS System Driver

[ Non-Plug and Play Drivers / NDIS Usermode I/O Protocol ]

Device Properties:
Driver Description NDIS Usermode I/O Protocol

[ Non-Plug and Play Drivers / NDProxy ]

Device Properties:
Driver Description NDProxy

[ Non-Plug and Play Drivers / NetBios over Tcpip ]

Device Properties:
Driver Description NetBios over Tcpip

[ Non-Plug and Play Drivers / Null ]

Device Properties:
Driver Description Null

[ Non-Plug and Play Drivers / PartMgr ]

Device Properties:
Driver Description PartMgr

[ Non-Plug and Play Drivers / PCIIde ]

Device Properties:
Driver Description PCIIde

[ Non-Plug and Play Drivers / perc2 ]

Device Properties:
Driver Description perc2

[ Non-Plug and Play Drivers / perc2hib ]

Device Properties:
Driver Description perc2hib

[ Non-Plug and Play Drivers / ql1080 ]

Device Properties:
Driver Description ql1080

[ Non-Plug and Play Drivers / Ql10wnt ]

Device Properties:
Driver Description Ql10wnt

[ Non-Plug and Play Drivers / ql12160 ]

Device Properties:
Driver Description ql12160

[ Non-Plug and Play Drivers / ql1240 ]

Device Properties:
Driver Description ql1240

[ Non-Plug and Play Drivers / ql1280 ]

Device Properties:
Driver Description ql1280

[ Non-Plug and Play Drivers / RDPCDD ]

Device Properties:
Driver Description RDPCDD

[ Non-Plug and Play Drivers / Remote Access Auto Connection Driver ]

Device Properties:
Driver Description Remote Access Auto Connection Driver

[ Non-Plug and Play Drivers / Remote Access IP ARP Driver ]

Device Properties:
Driver Description Remote Access IP ARP Driver

[ Non-Plug and Play Drivers / SIS AGP Bus Filter ]

Device Properties:
Driver Description SIS AGP Bus Filter

[ Non-Plug and Play Drivers / Sparrow ]

Device Properties:
Driver Description Sparrow

[ Non-Plug and Play Drivers / StreamDispatcher ]

Device Properties:
Driver Description StreamDispatcher

[ Non-Plug and Play Drivers / sym_hi ]

Device Properties:
Driver Description sym_hi

[ Non-Plug and Play Drivers / sym_u3 ]

Device Properties:
Driver Description sym_u3

[ Non-Plug and Play Drivers / symc810 ]

Device Properties:
Driver Description symc810

[ Non-Plug and Play Drivers / symc8xx ]

Device Properties:
Driver Description symc8xx

[ Non-Plug and Play Drivers / TCP/IP Protocol Driver ]

Device Properties:
Driver Description TCP/IP Protocol Driver

[ Non-Plug and Play Drivers / TosIde ]

Device Properties:
Driver Description TosIde

[ Non-Plug and Play Drivers / ultra ]

Device Properties:
Driver Description ultra

[ Non-Plug and Play Drivers / VgaSave ]

Device Properties:
Driver Description VgaSave

[ Non-Plug and Play Drivers / VIA AGP Bus Filter ]

Device Properties:
Driver Description VIA AGP Bus Filter

[ Non-Plug and Play Drivers / ViaIde ]

Device Properties:
Driver Description ViaIde

[ Non-Plug and Play Drivers / VolSnap ]

Device Properties:
Driver Description VolSnap

[ PCMCIA adapters / Texas Instruments PCI-4410 CardBus Controller ]

Device Properties:
Driver Description Texas Instruments PCI-4410 CardBus Controller
Driver Date 7/1/2001
Driver Version 5.1.2600.0
Driver Provider Microsoft
INF File pcmcia.inf
Hardware ID PCI\VEN_104C&DEV_AC41&SUBSYS_2029161F&REV_02
Location Information PCI bus 0, device 10, function 0
PCI Device Texas Instruments PCI-4410 PC Card CardBus Controller

Device Resources:
IRQ 05
Memory FBBFE000-FFBFDFFF
Memory FFBFE000-FFBFEFFF
Memory FFEFE000-FFEFEFFF
Memory FFEFF000-FFEFFFFF
Port FD00-FDFF
Port FE00-FEFF

[ Ports (COM & LPT) / ECP Printer Port (LPT1) ]

Device Properties:
Driver Description ECP Printer Port (LPT1)
Driver Date 7/1/2001
Driver Version 5.1.2600.0
Driver Provider Microsoft
INF File msports.inf
Hardware ID ACPI\PNP0401
PnP Device ECP Parallel Port

Device Resources:
DMA 01
Port 0378-037F
Port 0778-077F

[ Processors / Mobile AMD Athlon™ XP 2400+ ]

Device Properties:
Driver Description Mobile AMD Athlon™ XP 2400+
Driver Date 4/1/2004
Driver Version 5.1.2600.0
Driver Provider Microsoft
INF File cpu.inf
Hardware ID ACPI\AuthenticAMD_-_x86_Family_6_Model_10

[ Sound, video and game controllers / ALi Audio Accelerator WDM driver ]

Device Properties:
Driver Description ALi Audio Accelerator WDM driver
Driver Date 8/12/2002
Driver Version 5.12.1.6003
Driver Provider Microsoft
INF File wdma_ali.inf
Hardware ID PCI\VEN_10B9&DEV_5451&SUBSYS_2029161F&REV_02
Location Information PCI bus 0, device 8, function 0
PCI Device ULi/ALi M5451 AC-Link Controller Audio Device

Device Resources:
IRQ 11
Memory D0008000-D0008FFF
Port 8400-84FF

[ Sound, video and game controllers / Audio Codecs ]

Device Properties:
Driver Description Audio Codecs
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File wave.inf
Hardware ID MS_MMACM

[ Sound, video and game controllers / Legacy Audio Drivers ]

Device Properties:
Driver Description Legacy Audio Drivers
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File wave.inf
Hardware ID MS_MMDRV

[ Sound, video and game controllers / Legacy Video Capture Devices ]

Device Properties:
Driver Description Legacy Video Capture Devices
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File wave.inf
Hardware ID MS_MMVCD

[ Sound, video and game controllers / Media Control Devices ]

Device Properties:
Driver Description Media Control Devices
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File wave.inf
Hardware ID MS_MMMCI

[ Sound, video and game controllers / Standard Game Port ]

Device Properties:
Driver Description Standard Game Port
Driver Date 9/23/1998
Driver Version 5.0.0.0
Driver Provider Microsoft
INF File gameport.inf
Hardware ID ALiGamePor

[ Sound, video and game controllers / Video Codecs ]

Device Properties:
Driver Description Video Codecs
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File wave.inf
Hardware ID MS_MMVID

[ Storage volumes / Generic volume ]

Device Properties:
Driver Description Generic volume
Driver Date 7/1/2001
Driver Version 5.1.2600.0
Driver Provider Microsoft
INF File volume.inf
Hardware ID STORAGE\Volume

[ Storage volumes / Generic volume ]

Device Properties:
Driver Description Generic volume
Driver Date 7/1/2001
Driver Version 5.1.2600.0
Driver Provider Microsoft
INF File volume.inf
Hardware ID STORAGE\Volume

[ System devices / ACPI Fixed Feature Button ]

Device Properties:
Driver Description ACPI Fixed Feature Button
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\FixedButton

[ System devices / ACPI Lid ]

Device Properties:
Driver Description ACPI Lid
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0C0D
PnP Device Lid

[ System devices / ACPI Power Button ]

Device Properties:
Driver Description ACPI Power Button
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0C0C
PnP Device Power Button

[ System devices / ACPI Sleep Button ]

Device Properties:
Driver Description ACPI Sleep Button
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0C0E
PnP Device Sleep Button

[ System devices / ACPI Thermal Zone ]

Device Properties:
Driver Description ACPI Thermal Zone
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\ThermalZone

[ System devices / ALi 7101 Power Management Controller ]

Device Properties:
Driver Description ALi 7101 Power Management Controller
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID PCI\VEN_10B9&DEV_7101&SUBSYS_2029161F&REV_00
Location Information PCI bus 0, device 17, function 0
PCI Device ULi/ALi M7101 Power Management Controller

[ System devices / ALi PCI to ISA bridge ]

Device Properties:
Driver Description ALi PCI to ISA bridge
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID PCI\VEN_10B9&DEV_1533&SUBSYS_00000000&REV_00
Location Information PCI bus 0, device 7, function 0
PCI Device ULi/ALi M1533 PCI-ISA Bridge

[ System devices / Direct memory access controller ]

Device Properties:
Driver Description Direct memory access controller
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0200
PnP Device DMA Controller

Device Resources:
DMA 04
Port 0000-000F
Port 0081-008F
Port 00C0-00DF

[ System devices / Generic Bus ]

Device Properties:
Driver Description Generic Bus
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0A05
PnP Device Generic ACPI Bus

[ System devices / ISAPNP Read Data Port ]

Device Properties:
Driver Description ISAPNP Read Data Port
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ISAPNP\ReadDataPort

Device Resources:
Port 0274-0277
Port 0279-0279
Port 0A79-0A79

[ System devices / Microcode Update Device ]

Device Properties:
Driver Description Microcode Update Device
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID root\update

[ System devices / Microsoft ACPI-Compliant Embedded Controller ]

Device Properties:
Driver Description Microsoft ACPI-Compliant Embedded Controller
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File acpi.inf
Hardware ID ACPI\PNP0C09
PnP Device Embedded Controller Device

Device Resources:
Port 0062-0062
Port 0066-0066

[ System devices / Microsoft ACPI-Compliant System ]

Device Properties:
Driver Description Microsoft ACPI-Compliant System
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File acpi.inf
Hardware ID ACPI_HAL\PNP0C08
PnP Device ACPI Driver/BIOS

Device Resources:
IRQ 09

[ System devices / Microsoft Composite Battery ]

Device Properties:
Driver Description Microsoft Composite Battery
Driver Date 7/1/2001
Driver Version 5.1.2535.0
Driver Provider Microsoft
INF File acpi.inf
Hardware ID COMPOSITE_BATTERY

[ System devices / Microsoft System Management BIOS Driver ]

Device Properties:
Driver Description Microsoft System Management BIOS Driver
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID root\mssmbios

[ System devices / Motherboard resources ]

Device Properties:
Driver Description Motherboard resources
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0C02
PnP Device Motherboard Resources

Device Resources:
Port 0073-0073
Port 0080-0080
Port 0092-0092
Port 00B0-00B0
Port 00B1-00B3
Port 0200-0207
Port 03F2-03F5
Port 03F7-03F7
Port 040B-040B
Port 0480-048F
Port 04D0-04D1
Port 04D6-04D6
Port 8000-807F
Port F500-F503

[ System devices / Numeric data processor ]

Device Properties:
Driver Description Numeric data processor
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0C04
PnP Device Numeric Data Processor

Device Resources:
IRQ 13
Port 00F0-00FE

[ System devices / PCI bus ]

Device Properties:
Driver Description PCI bus
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0A03
PnP Device PCI Bus

Device Resources:
Memory 000A0000-000CEFFF
Memory 1C000000-FFF7FFFF
Port 0000-0CF7
Port 0D00-FFFF

[ System devices / PCI standard host CPU bridge ]

Device Properties:
Driver Description PCI standard host CPU bridge
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID PCI\VEN_1002&DEV_CAB0&SUBSYS_00000000&REV_13
Location Information PCI bus 0, device 0, function 0
PCI Device ATI Radeon IGP-320M Host-PCI Bridge

[ System devices / PCI standard PCI-to-PCI bridge ]

Device Properties:
Driver Description PCI standard PCI-to-PCI bridge
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID PCI\VEN_1002&DEV_700F&SUBSYS_00000000&REV_01
Location Information PCI bus 0, device 1, function 0
PCI Device ATI Radeon IGP-320M AGP Controller

Device Resources:
Memory 000A0000-000BFFFF
Memory D0100000-D01FFFFF
Memory E0000000-EFFFFFFF
Port 03B0-03BB
Port 03C0-03DF
Port 9000-9FFF

[ System devices / Plug and Play Software Device Enumerator ]

Device Properties:
Driver Description Plug and Play Software Device Enumerator
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID root\swenum

[ System devices / Printer Port Logical Interface ]

Device Properties:
Driver Description Printer Port Logical Interface
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID LPTENUM\MicrosoftRawPort958A
Location Information LPT1

[ System devices / Programmable interrupt controller ]

Device Properties:
Driver Description Programmable interrupt controller
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0000
PnP Device Programmable Interrupt Controller

Device Resources:
Port 0020-0021
Port 00A0-00A1

[ System devices / System board ]

Device Properties:
Driver Description System board
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0C01
PnP Device System Board Extension

Device Resources:
Memory 00000000-0009FFFF
Memory 000C0000-000CFFFF
Memory 000DC000-000DFFFF
Memory 000E0000-000FFFFF
Memory 00100000-1BFFFFFF
Memory D0400000-D0400FFF
Memory E8400000-E8400FFF
Memory F0400000-F0400FFF
Memory F4400000-F4400FFF
Memory FFF80000-FFFFFFFF

[ System devices / System CMOS/real time clock ]

Device Properties:
Driver Description System CMOS/real time clock
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0B00
PnP Device Real-Time Clock

Device Resources:
IRQ 08
Port 0070-0071

[ System devices / System speaker ]

Device Properties:
Driver Description System speaker
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0800
PnP Device PC Speaker

Device Resources:
Port 0061-0061

[ System devices / System timer ]

Device Properties:
Driver Description System timer
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ACPI\PNP0100
PnP Device System Timer

Device Resources:
IRQ 00
Port 0040-0043

[ System devices / Terminal Server Keyboard Driver ]

Device Properties:
Driver Description Terminal Server Keyboard Driver
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ROOT\RDP_KBD

[ System devices / Terminal Server Mouse Driver ]

Device Properties:
Driver Description Terminal Server Mouse Driver
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ROOT\RDP_MOU

[ System devices / Volume Manager ]

Device Properties:
Driver Description Volume Manager
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File machine.inf
Hardware ID ROOT\FTDISK

[ Universal Serial Bus controllers / NEC PCI to USB Open Host Controller ]

Device Properties:
Driver Description NEC PCI to USB Open Host Controller
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File usbport.inf
Hardware ID PCI\VEN_1033&DEV_0035&SUBSYS_2029161F&REV_43
Location Information PCI bus 0, device 13, function 0
PCI Device NEC uPD720101 USB OpenHCI Controller

Device Resources:
IRQ 11
Memory D000A000-D000AFFF

[ Universal Serial Bus controllers / NEC PCI to USB Open Host Controller ]

Device Properties:
Driver Description NEC PCI to USB Open Host Controller
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File usbport.inf
Hardware ID PCI\VEN_1033&DEV_0035&SUBSYS_2029161F&REV_43
Location Information PCI bus 0, device 13, function 1
PCI Device NEC uPD720101 USB OpenHCI Controller

Device Resources:
IRQ 11
Memory D000B000-D000BFFF

[ Universal Serial Bus controllers / Standard Enhanced PCI to USB Host Controller ]

Device Properties:
Driver Description Standard Enhanced PCI to USB Host Controller
Driver Date 6/1/2002
Driver Version 5.1.2600.0
Driver Provider Microsoft
INF File usbport.inf
Hardware ID PCI\VEN_1033&DEV_00E0&SUBSYS_2029161F&REV_04
Location Information PCI bus 0, device 13, function 2
PCI Device NEC uPD720101 USB 2.0 Enhanced Host Controller (v1.0)

Device Resources:
IRQ 11
Memory D000C800-D000C8FF

[ Universal Serial Bus controllers / USB Root Hub ]

Device Properties:
Driver Description USB Root Hub
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File usbport.inf
Hardware ID USB\ROOT_HUB20&VID1033&PID00E0&REV0004

[ Universal Serial Bus controllers / USB Root Hub ]

Device Properties:
Driver Description USB Root Hub
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File usbport.inf
Hardware ID USB\ROOT_HUB&VID1033&PID0035&REV0043

[ Universal Serial Bus controllers / USB Root Hub ]

Device Properties:
Driver Description USB Root Hub
Driver Date 7/1/2001
Driver Version 5.1.2600.2180
Driver Provider Microsoft
INF File usbport.inf
Hardware ID USB\ROOT_HUB&VID1033&PID0035&REV0043

[ Unknown / Network Controller ]

Device Properties:
Driver Description Network Controller
Hardware ID PCI\VEN_14E4&DEV_4320&SUBSYS_7050144F&REV_03
Location Information PCI bus 0, device 12, function 0
PCI Device Broadcom 802.11g Wireless Network Adapter

Device Resources:
IRQ 10
Memory D0004000-D0005FFF


--------[ Physical Devices ]--------------------------------------------------------------------------------------------

PCI Devices:
Bus 1, Device 5, Function 0 ATI Radeon IGP-320M (U1) Video Adapter
Bus 0, Device 1, Function 0 ATI Radeon IGP-320M AGP Controller
Bus 0, Device 0, Function 0 ATI Radeon IGP-320M Host-PCI Bridge
Bus 0, Device 12, Function 0 Broadcom 802.11g Wireless Network Adapter
Bus 0, Device 14, Function 0 Broadcom NetXtreme BCM4401-A1 Integrated Fast Ethernet Controller
Bus 0, Device 13, Function 2 NEC uPD720101 USB 2.0 Enhanced Host Controller (v1.0)
Bus 0, Device 13, Function 0 NEC uPD720101 USB OpenHCI Controller
Bus 0, Device 13, Function 1 NEC uPD720101 USB OpenHCI Controller
Bus 0, Device 10, Function 0 Texas Instruments PCI-4410 PC Card CardBus Controller
Bus 0, Device 10, Function 1 Texas Instruments PCI4410A OHCI-Lynx IEEE1394 FireWire Controller
Bus 0, Device 7, Function 0 ULi/ALi M1533 PCI-ISA Bridge
Bus 0, Device 16, Function 0 ULi/ALi M5229 IDE Controller
Bus 0, Device 8, Function 0 ULi/ALi M5451 AC-Link Controller Audio Device
Bus 0, Device 9, Function 0 ULi/ALi M5457 AC'97 Modem Controller
Bus 0, Device 17, Function 0 ULi/ALi M7101 Power Management Controller

PnP Devices:
PNP0303 101/102-Key or MS Natural Keyboard
PNP0C08 ACPI Driver/BIOS
FIXEDBUTTON ACPI Fixed Feature Button
THERMALZONE ACPI Thermal Zone
PNP0C0A Control Method Battery
PNP0200 DMA Controller
PNP0401 ECP Parallel Port
PNP0C09 Embedded Controller Device
PNP0A05 Generic ACPI Bus
PNP0C0D Lid
ACPI0003 Microsoft AC Adapter
AUTHENTICAMD_-_X86_FAMILY_6_MODEL_10 Mobile AMD Athlon™ XP 2400+
PNP0C02 Motherboard Resources
PNP0C04 Numeric Data Processor
PNP0800 PC Speaker
PNP0A03 PCI Bus
PNP0C0C Power Button
PNP0000 Programmable Interrupt Controller
PNP0B00 Real-Time Clock
PNP0C0E Sleep Button
SYN0002 Synaptics PS/2 Port TouchPad
PNP0C01 System Board Extension
PNP0100 System Timer

LPT PnP Devices:
MICROSOFTRAWPORT Printer Port Logical Interface

Ports:
LPT1 ECP Printer Port (LPT1)


--------[ PCI Devices ]-------------------------------------------------------------------------------------------------

[ ATI Radeon IGP-320M (U1) Video Adapter ]

Device Properties:
Device Description ATI Radeon IGP-320M (U1) Video Adapter
Bus Type AGP 4x
Bus / Device / Function 1 / 5 / 0
Device ID 1002-4336
Subsystem ID 161F-2029
Device Class 0300 (VGA Display Controller)
Revision 00
Fast Back-to-Back Transactions Supported, Enabled

Device Features:
66 MHz Operation Supported
Bus Mastering Enabled

AGP Properties:
AGP Version 2.00
AGP Status Disabled
Supported AGP Speeds 1x, 2x, 4x
Fast-Write Not Supported
Side Band Addressing Supported, Enabled

[ ATI Radeon IGP-320M AGP Controller ]

Device Properties:
Device Description ATI Radeon IGP-320M AGP Controller
Bus Type PCI
Bus / Device / Function 0 / 1 / 0
Device ID 1002-700F
Subsystem ID 0000-0000
Device Class 0604 (PCI/PCI Bridge)
Revision 01
Fast Back-to-Back Transactions Not Supported

Device Features:
66 MHz Operation Supported
Bus Mastering Enabled

[ ATI Radeon IGP-320M Host-PCI Bridge ]

Device Properties:
Device Description ATI Radeon IGP-320M Host-PCI Bridge
Bus Type PCI
Bus / Device / Function 0 / 0 / 0
Device ID 1002-CAB0
Subsystem ID 0000-0000
Device Class 0600 (Host/PCI Bridge)
Revision 13
Fast Back-to-Back Transactions Not Supported

Device Features:
66 MHz Operation Supported
Bus Mastering Enabled

AGP Properties:
AGP Version 2.00
AGP Status Enabled
Supported AGP Speeds 1x, 2x, 4x
Fast-Write Supported, Disabled
Side Band Addressing Supported, Disabled

[ Broadcom 802.11g Wireless Network Adapter ]

Device Properties:
Device Description Broadcom 802.11g Wireless Network Adapter
Bus Type PCI
Bus / Device / Function 0 / 12 / 0
Device ID 14E4-4320
Subsystem ID 144F-7050
Device Class 0280 (Network Controller)
Revision 03
Fast Back-to-Back Transactions Not Supported

Device Features:
66 MHz Operation Not Supported
Bus Mastering Disabled

[ Broadcom NetXtreme BCM4401-A1 Integrated Fast Ethernet Controller ]

Device Properties:
Device Description Broadcom NetXtreme BCM4401-A1 Integrated Fast Ethernet Controller
Bus Type PCI
Bus / Device / Function 0 / 14 / 0
Device ID 14E4-4401
Subsystem ID 161F-2029
Device Class 0200 (Ethernet Controller)
Revision 01
Fast Back-to-Back Transactions Not Supported

Device Features:
66 MHz Operation Not Supported
Bus Mastering Enabled

[ NEC uPD720101 USB 2.0 Enhanced Host Controller (v1.0) ]

Device Properties:
Device Description NEC uPD720101 USB 2.0 Enhanced Host Controller (v1.0)
Bus Type PCI
Bus / Device / Function 0 / 13 / 2
Device ID 1033-00E0
Subsystem ID 161F-2029
Device Class 0C03 (USB Controller)
Revision 04
Fast Back-to-Back Transactions Not Supported

Device Features:
66 MHz Operation Not Supported
Bus Mastering Enabled

[ NEC uPD720101 USB OpenHCI Controller ]

Device Properties:
Device Description NEC uPD720101 USB OpenHCI Controller
Bus Type PCI
Bus / Device / Function 0 / 13 / 0
Device ID 1033-0035
Subsystem ID 161F-2029
Device Class 0C03 (USB Controller)
Revision 43
Fast Back-to-Back Transactions Not Supported

Device Features:
66 MHz Operation Not Supported
Bus Mastering Enabled

[ NEC uPD720101 USB OpenHCI Controller ]

Device Properties:
Device Description NEC uPD720101 USB OpenHCI Controller
Bus Type PCI
Bus / Device / Function 0 / 13 / 1
Device ID 1033-0035
Subsystem ID 161F-2029
Device Class 0C03 (USB Controller)
Revision 43
Fast Back-to-Back Transactions Not Supported

Device Features:
66 MHz Operation Not Supported
Bus Mastering Enabled

[ Texas Instruments PCI-4410 PC Card CardBus Controller ]

Device Properties:
Device Description Texas Instruments PCI-4410 PC Card CardBus Controller
Bus Type PCI
Bus / Device / Function 0 / 10 / 0
Device ID 104C-AC41
Subsystem ID FE00-0000
Device Class 0607 (PCI/CardBus Bridge)
Revision 02
Fast Back-to-Back Transactions Not Supported

Device Features:
66 MHz Operation Not Supported
Bus Mastering Enabled

[ Texas Instruments PCI4410A OHCI-Lynx IEEE1394 FireWire Controller ]

Device Properties:
Device Description Texas Instruments PCI4410A OHCI-Lynx IEEE1394 FireWire Controller
Bus Type PCI
Bus / Device / Function 0 / 10 / 1
Device ID 104C-8017
Subsystem ID 161F-2029
Device Class 0C00 (Firewire Controller)
Revision 02
Fast Back-to-Back Transactions Not Supported

Device Features:
66 MHz Operation Not Supported
Bus Mastering Enabled

[ ULi/ALi M1533 PCI-ISA Bridge ]

Device Properties:
Device Description ULi/ALi M1533 PCI-ISA Bridge
Bus Type PCI
Bus / Device / Function 0 / 7 / 0
Device ID 10B9-1533
Subsystem ID 10B9-1533
Device Class 0601 (PCI/ISA Bridge)
Revision 00
Fast Back-to-Back Transactions Not Supported

Device Features:
66 MHz Operation Not Supported
Bus Mastering Enabled

[ ULi/ALi M5229 IDE Controller ]

Device Properties:
Device Description ULi/ALi M5229 IDE Controller
Bus Type PCI
Bus / Device / Function 0 / 16 / 0
Device ID 10B9-5229
Subsystem ID 161F-2029
Device Class 0101 (IDE Controller)
Revision C4
Fast Back-to-Back Transactions Supported, Disabled

Device Features:
66 MHz Operation Not Supported
Bus Mastering Enabled

[ ULi/ALi M5451 AC-Link Controller Audio Device ]

Device Properties:
Device Description ULi/ALi M5451 AC-Link Controller Audio Device
Bus Type PCI
Bus / Device / Function 0 / 8 / 0
Device ID 10B9-5451
Subsystem ID 161F-2029
Device Class 0401 (Audio Device)
Revision 02
Fast Back-to-Back Transactions Supported, Disabled

Device Features:
66 MHz Operation Not Supported
Bus Mastering Enabled

[ ULi/ALi M5457 AC'97 Modem Controller ]

Device Properties:
Device Description ULi/ALi M5457 AC'97 Modem Controller
Bus Type PCI
Bus / Device / Function 0 / 9 / 0
Device ID 10B9-5457
Subsystem ID 161F-2027
Device Class 0703 (Communications Controller)
Revision 00
Fast Back-to-Back Transactions Supported, Disabled

Device Features:
66 MHz Operation Not Supported
Bus Mastering Enabled

[ ULi/ALi M7101 Power Management Controller ]

Device Properties:
Device Description ULi/ALi M7101 Power Management Controller
Bus Type PCI
Bus / Device / Function 0 / 17 / 0
Device ID 10B9-7101
Subsystem ID 161F-2029
Device Class 0680 (Bridge Device)
Revision 00
Fast Back-to-Back Transactions Not Supported

Device Features:
66 MHz Operation Not Supported
Bus Mastering Disabled


--------[ Device Resources ]--------------------------------------------------------------------------------------------

DMA 01 Exclusive ECP Printer Port (LPT1)
DMA 04 Exclusive Direct memory access controller
IRQ 00 Exclusive System timer
IRQ 01 Exclusive Standard 101/102-Key or Microsoft Natural PS/2 Keyboard
IRQ 05 Shared Conexant SoftK56 Data Fax Modem
IRQ 05 Shared Texas Instruments PCI-4410 CardBus Controller
IRQ 05 Shared RADEON IGP 320M
IRQ 05 Shared Texas Instruments OHCI Compliant IEEE 1394 Host Controller
IRQ 08 Exclusive System CMOS/real time clock
IRQ 09 Shared Microsoft ACPI-Compliant System
IRQ 10 Shared Network Controller
IRQ 11 Shared Broadcom 440x 10/100 Integrated Controller
IRQ 11 Shared ALi Audio Accelerator WDM driver
IRQ 11 Shared NEC PCI to USB Open Host Controller
IRQ 11 Shared NEC PCI to USB Open Host Controller
IRQ 11 Shared Standard Enhanced PCI to USB Host Controller
IRQ 12 Exclusive PS/2 Compatible Mouse
IRQ 13 Exclusive Numeric data processor
IRQ 14 Exclusive Primary IDE Channel
IRQ 15 Exclusive Secondary IDE Channel
Memory 00000000-0009FFFF Exclusive System board
Memory 000A0000-000BFFFF Shared RADEON IGP 320M
Memory 000A0000-000BFFFF Undetermined PCI standard PCI-to-PCI bridge
Memory 000A0000-000CEFFF Shared PCI bus
Memory 000C0000-000CFFFF Exclusive System board
Memory 000DC000-000DFFFF Exclusive System board
Memory 000E0000-000FFFFF Exclusive System board
Memory 00100000-1BFFFFFF Exclusive System board
Memory 1C000000-FFF7FFFF Shared PCI bus
Memory D0000000-D0003FFF Exclusive Texas Instruments OHCI Compliant IEEE 1394 Host Controller
Memory D0004000-D0005FFF Undetermined Network Controller
Memory D0006000-D0007FFF Exclusive Broadcom 440x 10/100 Integrated Controller
Memory D0008000-D0008FFF Exclusive ALi Audio Accelerator WDM driver
Memory D0009000-D0009FFF Exclusive Conexant SoftK56 Data Fax Modem
Memory D000A000-D000AFFF Exclusive NEC PCI to USB Open Host Controller
Memory D000B000-D000BFFF Exclusive NEC PCI to USB Open Host Controller
Memory D000C000-D000C7FF Exclusive Texas Instruments OHCI Compliant IEEE 1394 Host Controller
Memory D000C800-D000C8FF Exclusive Standard Enhanced PCI to USB Host Controller
Memory D0100000-D010FFFF Exclusive RADEON IGP 320M
Memory D0100000-D01FFFFF Exclusive PCI standard PCI-to-PCI bridge
Memory D0400000-D0400FFF Exclusive System board
Memory E0000000-EFFFFFFF Exclusive PCI standard PCI-to-PCI bridge
Memory E0000000-EFFFFFFF Exclusive RADEON IGP 320M
Memory E8400000-E8400FFF Exclusive System board
Memory F0400000-F0400FFF Exclusive System board
Memory F4400000-F4400FFF Exclusive System board
Memory FBBFE000-FFBFDFFF Undetermined Texas Instruments PCI-4410 CardBus Controller
Memory FFBFE000-FFBFEFFF Exclusive Texas Instruments PCI-4410 CardBus Controller
Memory FFEFE000-FFEFEFFF Exclusive Texas Instruments PCI-4410 CardBus Controller
Memory FFEFF000-FFEFFFFF Exclusive Texas Instruments PCI-4410 CardBus Controller
Memory FFF80000-FFFFFFFF Exclusive System board
Port 0000-000F Exclusive Direct memory access controller
Port 0000-0CF7 Shared PCI bus
Port 0020-0021 Exclusive Programmable interrupt controller
Port 0040-0043 Exclusive System timer
Port 0060-0060 Exclusive Standard 101/102-Key or Microsoft Natural PS/2 Keyboard
Port 0061-0061 Exclusive System speaker
Port 0062-0062 Exclusive Microsoft ACPI-Compliant Embedded Controller
Port 0064-0064 Exclusive Standard 101/102-Key or Microsoft Natural PS/2 Keyboard
Port 0066-0066 Exclusive Microsoft ACPI-Compliant Embedded Controller
Port 0070-0071 Exclusive System CMOS/real time clock
Port 0073-0073 Exclusive Motherboard resources
Port 0080-0080 Exclusive Motherboard resources
Port 0081-008F Exclusive Direct memory access controller
Port 0092-0092 Exclusive Motherboard resources
Port 00A0-00A1 Exclusive Programmable interrupt controller
Port 00B0-00B0 Exclusive Motherboard resources
Port 00B1-00B3 Exclusive Motherboard resources
Port 00C0-00DF Exclusive Direct memory access controller
Port 00F0-00FE Exclusive Numeric data processor
Port 0170-0177 Exclusive Secondary IDE Channel
Port 01F0-01F7 Exclusive Primary IDE Channel
Port 0200-0207 Exclusive Motherboard resources
Port 0274-0277 Exclusive ISAPNP Read Data Port
Port 0279-0279 Exclusive ISAPNP Read Data Port
Port 0376-0376 Exclusive Secondary IDE Channel
Port 0378-037F Exclusive ECP Printer Port (LPT1)
Port 03B0-03BB Shared RADEON IGP 320M
Port 03B0-03BB Undetermined PCI standard PCI-to-PCI bridge
Port 03C0-03DF Shared RADEON IGP 320M
Port 03C0-03DF Undetermined PCI standard PCI-to-PCI bridge
Port 03F2-03F5 Exclusive Motherboard resources
Port 03F6-03F6 Exclusive Primary IDE Channel
Port 03F7-03F7 Exclusive Motherboard resources
Port 040B-040B Exclusive Motherboard resources
Port 0480-048F Exclusive Motherboard resources
Port 04D0-04D1 Exclusive Motherboard resources
Port 04D6-04D6 Exclusive Motherboard resources
Port 0778-077F Exclusive ECP Printer Port (LPT1)
Port 0A79-0A79 Exclusive ISAPNP Read Data Port
Port 0D00-FFFF Shared PCI bus
Port 8000-807F Exclusive Motherboard resources
Port 8080-808F Exclusive ALi M5229 PCI Bus Master IDE Controller
Port 8400-84FF Exclusive ALi Audio Accelerator WDM driver
Port 8800-88FF Exclusive Conexant SoftK56 Data Fax Modem
Port 9000-90FF Exclusive RADEON IGP 320M
Port 9000-9FFF Exclusive PCI standard PCI-to-PCI bridge
Port F500-F503 Exclusive Motherboard resources
Port FD00-FDFF Exclusive Texas Instruments PCI-4410 CardBus Controller
Port FE00-FEFF Exclusive Texas Instruments PCI-4410 CardBus Controller


--------[ Input ]-------------------------------------------------------------------------------------------------------

[ Standard 101/102-Key or Microsoft Natural PS/2 Keyboard ]

Keyboard Properties:
Keyboard Name Standard 101/102-Key or Microsoft Natural PS/2 Keyboard
Keyboard Type IBM enhanced (101- or 102-key) keyboard
Keyboard Layout US
ANSI Code Page 1252 - Western European (Windows)
OEM Code Page 437
Repeat Delay 1
Repeat Rate 31

[ PS/2 Compatible Mouse ]

Mouse Properties:
Mouse Name PS/2 Compatible Mouse
Mouse Buttons 3
Mouse Hand Right
Pointer Speed 1
Double-Click Time 500 msec
X/Y Threshold 6 / 10
Wheel Scroll Lines 3

Mouse Features:
Active Window Tracking Disabled
ClickLock Disabled
Hide Pointer While Typing Enabled
Mouse Wheel Present
Move Pointer To Default Button Disabled
Pointer Trails Disabled
Sonar Disabled


--------[ Printers ]----------------------------------------------------------------------------------------------------

[ Microsoft XPS Document Writer (Default) ]

Printer Properties:
Printer Name Microsoft XPS Document Writer
Default Printer Yes
Share Point Not shared
Printer Port XPSPort:
Printer Driver Microsoft XPS Document Writer (v6.00)
Device Name Microsoft XPS Document Writer
Print Processor WinPrint
Separator Page None
Availability Always
Priority 1
Print Jobs Queued 0
Status Unknown

Paper Properties:
Paper Size Letter, 8.5 x 11 in
Orientation Portrait
Print Quality 600 x 600 dpi Color


--------[ Debug - PCI ]-------------------------------------------------------------------------------------------------

B00 D00 F00: ATI Radeon IGP-320M Host-PCI Bridge

Offset 00: 02 10 B0 CA 06 00 30 32 13 00 00 06 00 40 00 00
Offset 10: 08 00 00 D4 08 00 40 D0 91 80 00 00 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 30: 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00
Offset 40: 00 00 00 00 0B 03 00 00 00 00 00 00 04 0D 00 00
Offset 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 60: BD 0C A0 85 24 36 E2 56 00 00 00 00 00 27 C6 C3
Offset 70: E0 0D 20 31 84 84 84 84 00 00 00 00 00 00 00 00
Offset 80: 00 00 00 00 96 70 83 00 33 00 30 00 13 00 00 00
Offset 90: 00 00 00 00 1F 1F 05 00 00 00 7F 7F 84 00 00 00
Offset A0: 02 00 20 00 17 02 00 0F 00 01 00 00 03 00 00 00
Offset B0: 00 00 00 00 08 00 00 00 04 04 04 04 00 00 00 00
Offset C0: 00 00 00 FF 5A 15 05 0F 00 1C FF 1F 00 00 84 00
Offset D0: 2B 3B 07 00 2B 3B 47 00 6A 00 60 10 00 00 00 FF
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 FF 00 00 00 FF
Offset F0: 1F 00 09 00 00 00 00 FF 00 08 10 18 00 00 00 00

B00 D01 F00: ATI Radeon IGP-320M AGP Controller

Offset 00: 02 10 0F 70 07 00 20 02 01 00 04 06 00 63 01 00
Offset 10: 00 00 00 00 00 00 00 00 00 01 01 44 91 91 20 22
Offset 20: 10 D0 10 D0 00 E0 F0 EF 00 00 00 00 00 00 00 00
Offset 30: 00 00 00 00 00 00 00 00 00 00 00 00 FF 00 0C 00
Offset 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B00 D07 F00: ULi/ALi M1533 PCI-ISA Bridge

Offset 00: B9 10 33 15 0F 00 10 02 00 00 01 06 00 00 00 00
Offset 10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 B9 10 33 15
Offset 30: 00 00 00 00 A0 00 00 00 00 00 00 00 00 00 00 00
Offset 40: 01 D1 08 C0 DD 02 00 03 90 95 00 95 00 00 ED 33
Offset 50: 00 00 00 40 02 00 02 00 4C 08 01 00 00 00 E0 F1
Offset 60: 28 70 00 21 00 00 00 00 00 00 00 00 00 64 25 00
Offset 70: 92 00 23 00 00 1F 81 12 10 00 E0 B8 42 00 00 91
Offset 80: A5 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 01 00 01 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B00 D08 F00: ULi/ALi M5451 AC-Link Controller Audio Device

Offset 00: B9 10 51 54 07 00 90 C2 02 00 01 04 00 40 00 00
Offset 10: 01 84 00 00 00 80 00 D0 00 00 00 00 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 1F 16 29 20
Offset 30: 00 00 00 00 DC 00 00 00 00 00 00 00 0B 01 02 18
Offset 40: 00 00 00 00 20 40 08 E2 00 00 00 00 00 00 00 00
Offset 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 01 00 22 E6
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B00 D09 F00: ULi/ALi M5457 AC'97 Modem Controller

Offset 00: B9 10 57 54 07 00 90 02 00 00 03 07 00 40 00 00
Offset 10: 00 90 00 D0 01 88 00 00 00 00 00 00 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 1F 16 27 20
Offset 30: 00 00 00 00 40 00 00 00 00 00 00 00 05 01 00 00
Offset 40: 01 00 22 C0 00 00 00 00 01 00 00 00 00 00 00 00
Offset 50: 1F 16 27 20 40 04 00 00 08 00 00 00 00 00 00 00
Offset 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B00 D0A F00: Texas Instruments PCI-4410 PC Card CardBus Controller

Offset 00: 4C 10 41 AC 07 00 10 02 02 00 07 06 08 20 82 00
Offset 10: 00 E0 BF FF A0 00 00 02 00 81 81 00 00 E0 EF FF
Offset 20: 00 E0 EF FF 00 E0 BF FB 00 D0 BF FF 00 FE 00 00
Offset 30: FC FE 00 00 00 FD 00 00 FC FD 00 00 05 01 C0 00
Offset 40: 1F 16 29 20 01 00 00 00 00 00 00 00 00 00 00 00
Offset 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 61 90 64 28 00 04 00 00 00 00 00 00 00 1C 00 01
Offset 90: C0 A2 64 60 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 01 00 11 7E 00 00 C0 00 00 00 00 00 1F 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B00 D0A F01: Texas Instruments PCI4410A OHCI-Lynx IEEE1394 FireWire Controller

Offset 00: 4C 10 17 80 16 00 10 02 02 10 00 0C 10 40 80 00
Offset 10: 00 C0 00 D0 00 00 00 D0 00 00 00 00 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 1F 16 29 20
Offset 30: 00 00 00 00 44 00 00 00 00 00 00 00 05 01 03 04
Offset 40: 00 00 00 00 01 00 11 64 00 00 00 00 00 00 00 00
Offset 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 24 00 00 82 10 00 00 1F 16 29 20 00 00 00 00

B00 D0C F00: Broadcom 802.11g Wireless Network Adapter

Offset 00: E4 14 20 43 02 00 10 00 03 00 80 02 00 40 00 00
Offset 10: 00 40 00 D0 00 00 00 00 00 00 00 00 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 4F 14 50 70
Offset 30: 00 00 00 00 40 00 00 00 00 00 00 00 0A 01 00 00
Offset 40: 01 00 C2 FF 00 40 00 00 00 00 00 00 00 00 00 00
Offset 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 00 10 00 18 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 02 00 00 00 00 00 00 00 00 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: FF 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B00 D0D F00: NEC uPD720101 USB OpenHCI Controller

Offset 00: 33 10 35 00 16 00 10 02 43 10 03 0C 10 40 80 00
Offset 10: 00 A0 00 D0 00 00 00 00 00 00 00 00 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 1F 16 29 20
Offset 30: 00 00 00 00 40 00 00 00 00 00 00 00 0B 01 01 2A
Offset 40: 01 00 02 FE 00 00 00 00 00 00 00 00 00 00 00 00
Offset 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 05 33 B0 6C 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B00 D0D F01: NEC uPD720101 USB OpenHCI Controller

Offset 00: 33 10 35 00 16 00 10 02 43 10 03 0C 10 40 00 00
Offset 10: 00 B0 00 D0 00 00 00 00 00 00 00 00 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 1F 16 29 20
Offset 30: 00 00 00 00 40 00 00 00 00 00 00 00 0B 02 01 2A
Offset 40: 01 00 02 FE 00 00 00 00 00 00 00 00 00 00 00 00
Offset 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B00 D0D F02: NEC uPD720101 USB 2.0 Enhanced Host Controller (v1.0)

Offset 00: 33 10 E0 00 16 00 10 02 04 20 03 0C 10 84 00 00
Offset 10: 00 C8 00 D0 00 00 00 00 00 00 00 00 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 1F 16 29 20
Offset 30: 00 00 00 00 40 00 00 00 00 00 00 00 0B 03 10 22
Offset 40: 01 00 02 FE 00 00 00 00 00 00 00 00 00 00 00 00
Offset 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 60: 20 20 3F 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 05 33 B0 6C 00 00 00 00 01 00 00 00 00 00 00 C0
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B00 D0E F00: Broadcom NetXtreme BCM4401-A1 Integrated Fast Ethernet Controller

Offset 00: E4 14 01 44 06 00 10 08 01 00 00 02 00 40 00 00
Offset 10: 00 60 00 D0 00 00 00 00 00 00 00 00 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 1F 16 29 20
Offset 30: 00 00 00 00 40 00 00 00 00 00 00 00 0B 01 00 00
Offset 40: 01 00 C2 FF 00 41 00 00 00 00 00 00 00 00 00 00
Offset 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 00 00 00 18 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 00 10 00 00 01 20 00 FF 00 00 00 00 00 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B00 D10 F00: ULi/ALi M5229 IDE Controller

Offset 00: B9 10 29 52 05 00 90 02 C4 FA 01 01 00 00 00 00
Offset 10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 20: 81 80 00 00 00 00 00 00 00 00 00 00 1F 16 29 20
Offset 30: 00 00 00 00 60 00 00 00 00 00 00 00 00 01 02 04
Offset 40: 00 00 00 4A 00 00 00 00 30 00 20 C1 00 00 BA 3A
Offset 50: 02 00 00 8B 55 55 0F 0A 02 31 31 00 02 31 31 00
Offset 60: 01 00 02 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

B00 D11 F00: ULi/ALi M7101 Power Management Controller

Offset 00: B9 10 01 71 00 00 00 02 00 00 80 06 00 00 00 00
Offset 10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 1F 16 29 20
Offset 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 40: 00 40 00 00 00 00 22 01 EA 63 04 30 00 00 00 00
Offset 50: 00 01 00 00 00 00 00 00 00 5F 01 C8 00 00 00 00
Offset 60: 00 00 00 00 A5 00 00 00 00 00 00 AA 01 22 60 0E
Offset 70: 01 81 00 00 00 00 00 28 F7 77 00 B0 F8 02 00 00
Offset 80: 76 C8 17 1A 20 00 00 00 02 00 00 02 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 37 00 00 BC 01 34 01 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 F5 20 80
Offset B0: 00 04 00 00 00 00 01 08 20 04 00 00 00 00 00 95
Offset C0: 12 11 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 46 04 00 00 00 00 00 00 00 40 00 32 33 00 00
Offset E0: 00 80 40 80 01 00 01 00 00 00 00 00 00 00 00 00
Offset F0: 01 00 20 1E 00 00 00 00 00 00 00 00 00 00 00 00

B01 D05 F00: ATI Radeon IGP-320M (U1) Video Adapter

Offset 00: 02 10 36 43 87 02 B0 02 00 00 00 03 10 FF 00 00
Offset 10: 08 00 00 E0 01 90 00 00 00 00 10 D0 00 00 00 00
Offset 20: 00 00 00 00 00 00 00 00 00 00 00 00 1F 16 29 20
Offset 30: 00 00 00 00 58 00 00 00 00 00 00 00 05 01 08 00
Offset 40: 00 00 00 00 00 00 00 00 00 00 00 00 1F 16 29 20
Offset 50: 01 00 02 06 00 00 00 00 02 50 20 00 07 02 00 2F
Offset 60: 00 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00


--------[ Debug - Video BIOS ]------------------------------------------------------------------------------------------

C000:0000 U.x.....................t.....IBM............... 761295520......
C000:0040 ??..............2003/09/05 15:54.....2...f......G.....6C........
C000:0080 ..CABO W720 Rel7712 CL77318 BR4101...© 1988-2002, ATI Technolo
C000:00C0 gies Inc. BK5.0.0 VR001.000.007.007.018.000.001.001 c6w720.ari v
C000:0100 611 .U1 AGP DGN1UN...\.......\....T..........(.......6C6C......
C000:0140 ..furj9.......-...$TVS..@.=........~..B.7...........PCIR..6C....
C000:0180 ....x.......RADEON IGP 320M ....u....&>.........................
C000:01C0 u....&>........................0 ..3Q..CD..<..... .....A.......
C000:0200 .P ....X .A`..M.......[.H.........B.........B........0@.........
C000:0240 .........@........dM........dM.........H.........M.........M....
C000:0280 .....D........4@...s....tA.....................-.............C..
C000:02C0 .8........L.....L..........H.<.B.......................B.....B..
C000:0300 ..H.<..A...A....T.?0T...A.........-....H.....$ATI...S.....#.....
C000:0340 ................T....g.`.........d.........h.........l..........
C000:0380 ...........................................................f`...
C000:03C0 .>...u.........0............u...............2..9.2.u....2.......


------------------------------------------------------------------------------------------------------------------------

The names of actual companies and products mentioned herein may be the trademarks of their respective owners.

Attached Thumbnails

  • system_summary.JPG

  • 0

#15
123Runner

123Runner

    Member 4k

  • Member
  • PipPipPipPipPipPipPip
  • 4,307 posts
Sorry about Everest. Evidently they upgraded the program. I will have to look at the changes.

Anyways....
The main board is arima W720K7
Some searching shows it is the same board as in a couple other models.

The eMachines M5309 uses the Arima W720-K7 motherboard the same as the M5310

Go to HERE and get the chipset driver.
The other drivers should work also if needed because the boards are the same.

Once it is up and running, burn the drivers to a CD for future use.
  • 0






Similar Topics

0 user(s) are reading this topic

0 members, 0 guests, 0 anonymous users

As Featured On:

Microsoft Yahoo BBC MSN PC Magazine Washington Post HP
