computer would crash when ever it is working to hard.


  • Please log in to reply

#16
dooms982

dooms982

    Member

  • Topic Starter
  • Member
  • PipPip
  • 83 posts
Alright i did the on ram stress test, and the temp was still over 100 for each.
  • 0

Advertisements


#17
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
What temp?
Even if the temp did go up did the system crash like before?
  • 0

#18
dooms982

dooms982

    Member

  • Topic Starter
  • Member
  • PipPip
  • 83 posts
They crash around 105-108 degrees C.
  • 0

#19
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts

They crash around 105-108 degrees C.


Where are you getting this temp from?


Download SIW from HERE and get the Standalone English version
It will install itself and when finished
Then Click on SIW Icon to run program
On the left side click on one at a time of the following and then on the right, copy and paste the information in your next reply



Motherboard Info:

Download SIW from HERE and get the Standalone English version
It will install itself and when finished

Then Click on SIW Icon to run program
On the left side click on the Motherboard directory and then on the right, copy and paste the information in your next reply
On the left side click on the Sensors directory and then on the right, copy and paste the information in your next reply

http://www.gtopala.c...w-download.html
  • 0

#20
dooms982

dooms982

    Member

  • Topic Starter
  • Member
  • PipPip
  • 83 posts
I'm getting the temp info from speed fan
--Motherboard--

Property Value
Manufacturer ASUSTeK Computer INC.
Model P5Q-PRO
Version Rev 1.xx
Serial Number MS1C8AB26100900

North Bridge Intel P45/P43 Revision A3
South Bridge Intel 82801JR (ICH10R) Revision A3

CPU Intel® Core™2 Quad CPU Q9550 @ 2.83GHz
Cpu Socket Socket 775 LGA

System Slots 6 PCI

Memory Summary
Maximum Capacity 4096 MBytes
Maximum Memory Module Size 2048 MBytes
Memory Slots 4
Error Correction None

Warning! Accuracy of DMI data cannot be guaranteed

--Sensors--

Sensor Value Min Max
OI-PC
Winbond W83627DHG

Voltages
CPU VCORE 1.11 V 1.09 V 1.11 V
VIN1 1.72 V 1.72 V 1.73 V
+3.3V 3.33 V 3.33 V 3.33 V
+5V 4.94 V 4.94 V 4.94 V
+12V 11.93 V 11.93 V 11.93 V
VIN6 1.30 V 1.30 V 1.30 V

Temperatures
SYSTIN 34 C (93 F) 34 C (93 F) 34 C (93 F)
CPUTIN 51 C (123 F) 51 C (123 F) 67 C (152 F)
AUXTIN 26 C (78 F) 26 C (78 F) 27 C (79 F)

Fans
CPUFANIN0 2008 RPM 1962 RPM 2109 RPM
AUXFANIN0 3125 RPM 3068 RPM 3125 RPM

Analog Device ASP0800
Currents
CPU 11.61 A 11.16 A 22.94 A
Powers
CPU 12.98 W 12.27 W 25.25 W

Intel Core 2 Quad Q9550
Temperatures
Core #0 72 C (161 F) 70 C (157 F) 84 C (183 F)
Core #1 67 C (152 F) 67 C (152 F) 81 C (177 F)
Core #2 72 C (161 F) 71 C (159 F) 86 C (186 F)
Core #3 70 C (157 F) 70 C (157 F) 85 C (184 F)

Radeon HD 4850
Temperatures
GPU Core 65 C (148 F) 64 C (147 F) 65 C (148 F)

ATI Radeon HD 4800 Series
Temperatures
GPU Core 65 C (148 F) 65 C (148 F) 66 C (149 F)

SAMSUNG HD103UJ
Temperatures
Assembly 24 C (75 F) 23 C (73 F) 24 C (75 F)
Air Flow 22 C (71 F) 22 C (71 F) 22 C (71 F)

WDC WD1001FALS-00E3A0
Temperatures
Assembly 25 C (76 F) 24 C (75 F) 25 C (76 F)

WDC WD1500HLFS-01G6U0
Temperatures
Assembly 26 C (78 F) 26 C (78 F) 26 C (78 F)

WDC WD6400AAKS-00A7B2
Temperatures
Assembly 25 C (76 F) 24 C (75 F) 25 C (76 F)
  • 0

#21
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
Going back to post 12 I know you ran the manual test on the memory with no issues but can you run the memtest program itself and test all the memory.
Also could you post a screenshot of speedfan with the temps you are stating?

Download Speedfan (The download link is to the right), and install it. Once it's installed, run the program and post here the information it shows.
The information I want you to post is the stuff that is circled in the example picture I have attached.
To make sure we are getting all the correct information it would help us if you were to attach a screenshot like the one below of your Speedfan results.

To do a screenshot please have click on your Print Screen on your keyboard.
  • It is normally the key above your number pad between the F12 key and the Scroll Lock key
  • Now go to Start and then to All Programs
  • Scroll to Accessories and then click on Paint
  • In the Empty White Area click and hold the CTRL key and then click the V
  • Go to the File option at the top and click on Save as
  • Save as file type JPEG and save it to your Desktop
  • Attach it to your next reply

Posted Image
  • 0

#22
dooms982

dooms982

    Member

  • Topic Starter
  • Member
  • PipPip
  • 83 posts

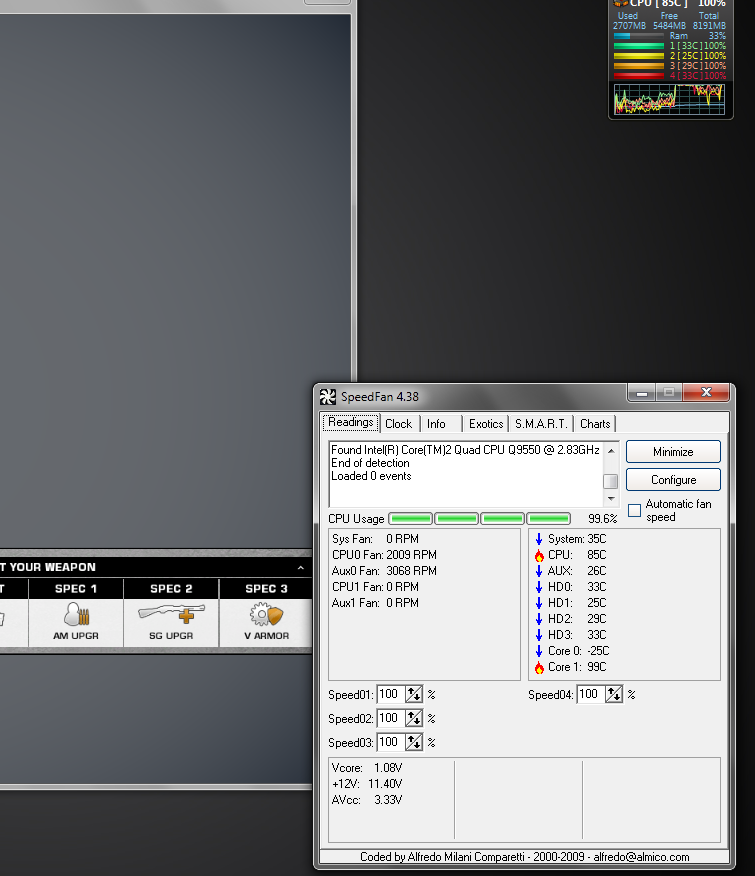

here are some images of the temps of different times. i couldn't bring the 108 temp like i was saying earlier so Im going to do the One ram test again to bring out the same conditions.

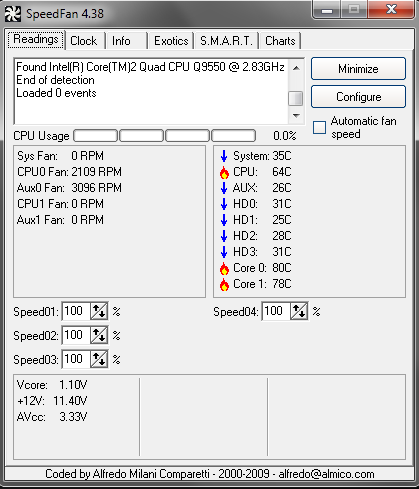

normal temp

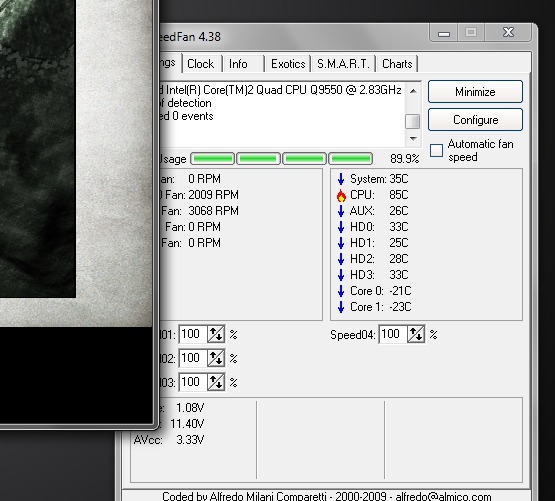

a crash happen about 30 seconds after this.

just another with the game on

so ill be back when I take a shot on the 100-108 degrees temps on speed fan. I wont be able to do it right know since im in a rush.

and thanks for your help so far.

Edited by dooms982, 15 March 2011 - 06:57 PM.

  • 0

#23
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
OK can you tell me exactly what reading is showing the 108 temp?
  • 0

#24
dooms982

dooms982

    Member

  • Topic Starter
  • Member
  • PipPip
  • 83 posts
sorry all that shows is whats happening when I have all four ram sticks. HEre are the one's that show the temp over 100, I almost got a picture of 107 but my computer crashed, so the highest i was able to take was 105.

here are the pics

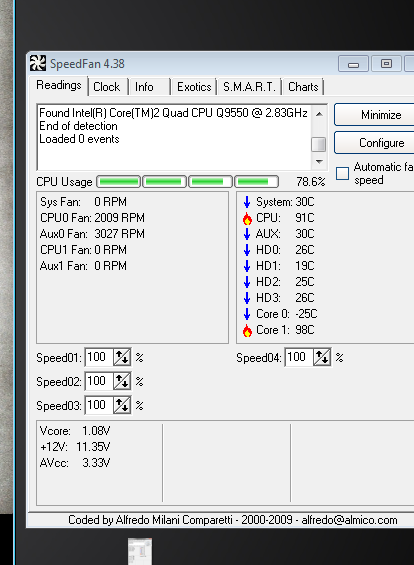

under 100

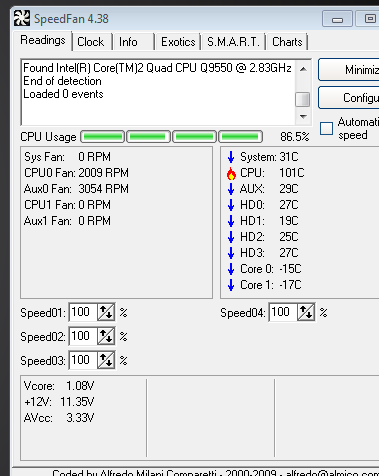

101

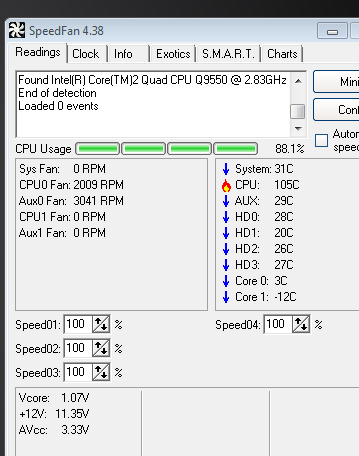

105
  • 0

#25
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
Hmm that is your CPU not your Ram Memory.
I would open the system and check the cpu fan for dust and any wires that may be slowing or stopping the fan from turning at full capacity.
Using a can of compressed air blow the dust out of the inside of the system especially around the CPU, PSU and secondary case fans.
NOTE: Do not allow the fins on any fan to spin freely when blowing them out. Use something like a q-tip to keep the fins from turning.
  • 0

Advertisements


#26
dooms982

dooms982

    Member

  • Topic Starter
  • Member
  • PipPip
  • 83 posts
Dusting out the computer is one of the first things I did, since I wanted to make sure that wasn't the problem. And I also double check the wires non of them are in the way of the fans.

I was thinking in getting a filter and flip one of the fans from blowing out to blowing in, would this help?
  • 0

#27
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
If you have a fan on the front inside that would be your intake fan.
All others would be exhaust depending on how many fans you have.
  • 0

#28
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
Just found this and I'm not sure if it will show anything but worth a try.
Please download Real Temp and run the program.
We could have a faulty sensors and that can be causing a wrong reading.
RealTemp includes a feature to test for faulty sensors which are common in 45nm Core 2 Duos (such as the OP's CPU) which causes the idle temperature to report as being above 50C, even though it isn't.


http://www.techpower...325/mirrors.php
  • 0

#29
dooms982

dooms982

    Member

  • Topic Starter
  • Member
  • PipPip
  • 83 posts
the computer crash when I was doing the sensor test.

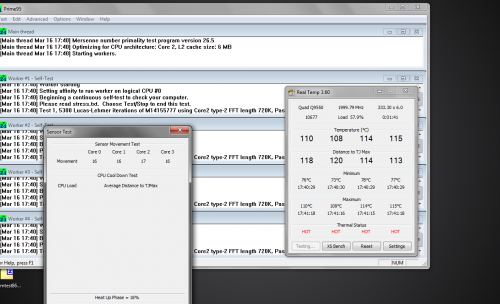

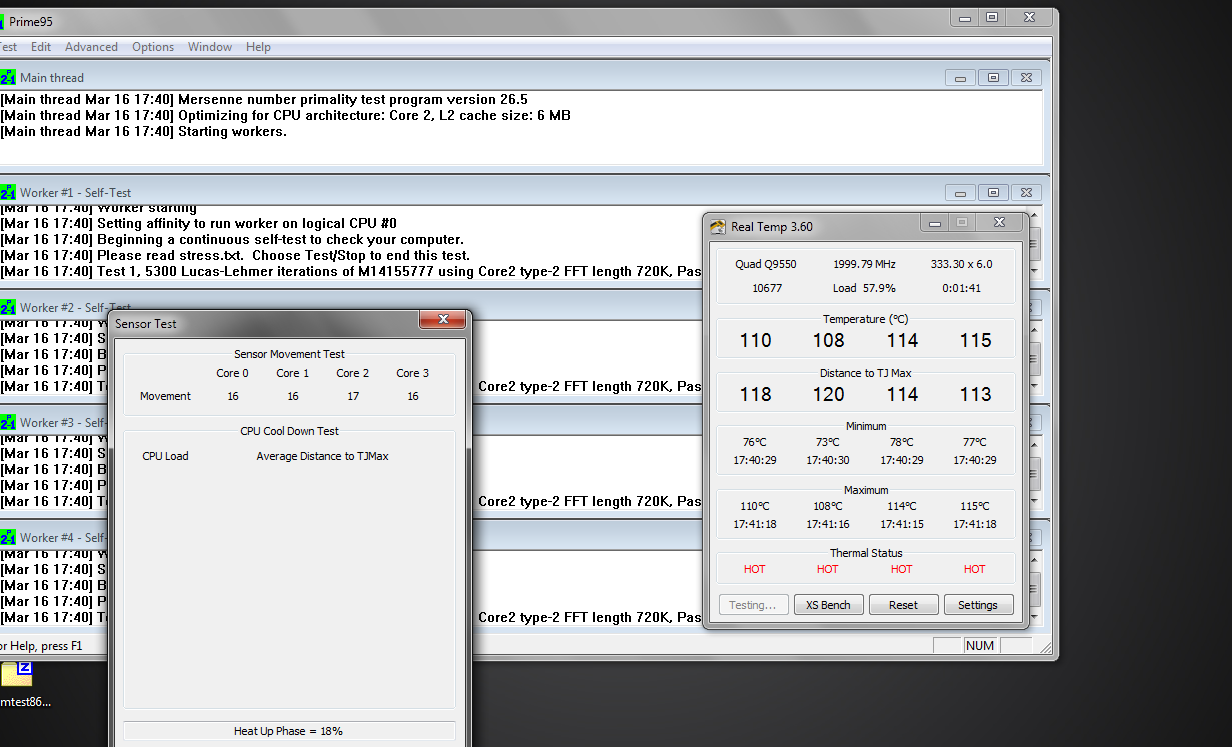

before crash

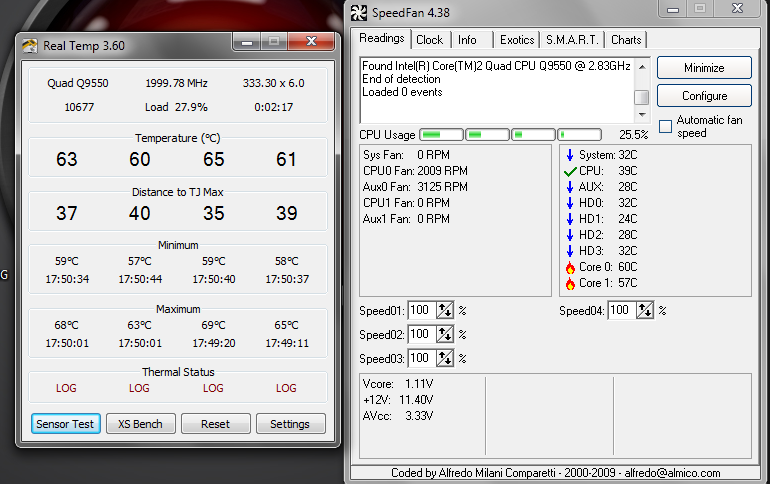

when idle
  • 0

#30
dooms982

dooms982

    Member

  • Topic Starter
  • Member
  • PipPip
  • 83 posts

If you have a fan on the front inside that would be your intake fan.
All others would be exhaust depending on how many fans you have.



I don't have an intake fan I only have exhausts fans.
