To further elaborate on the previous instructions I just wanted to add some links.
(The download link is to the right), and install it. Once it's installed, run the program and post here the information it shows.
The information I want you to post is the stuff that is circled in the example picture I have attached.

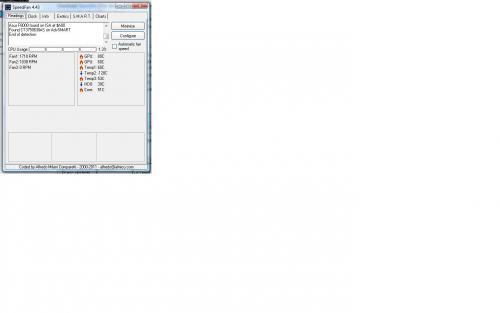

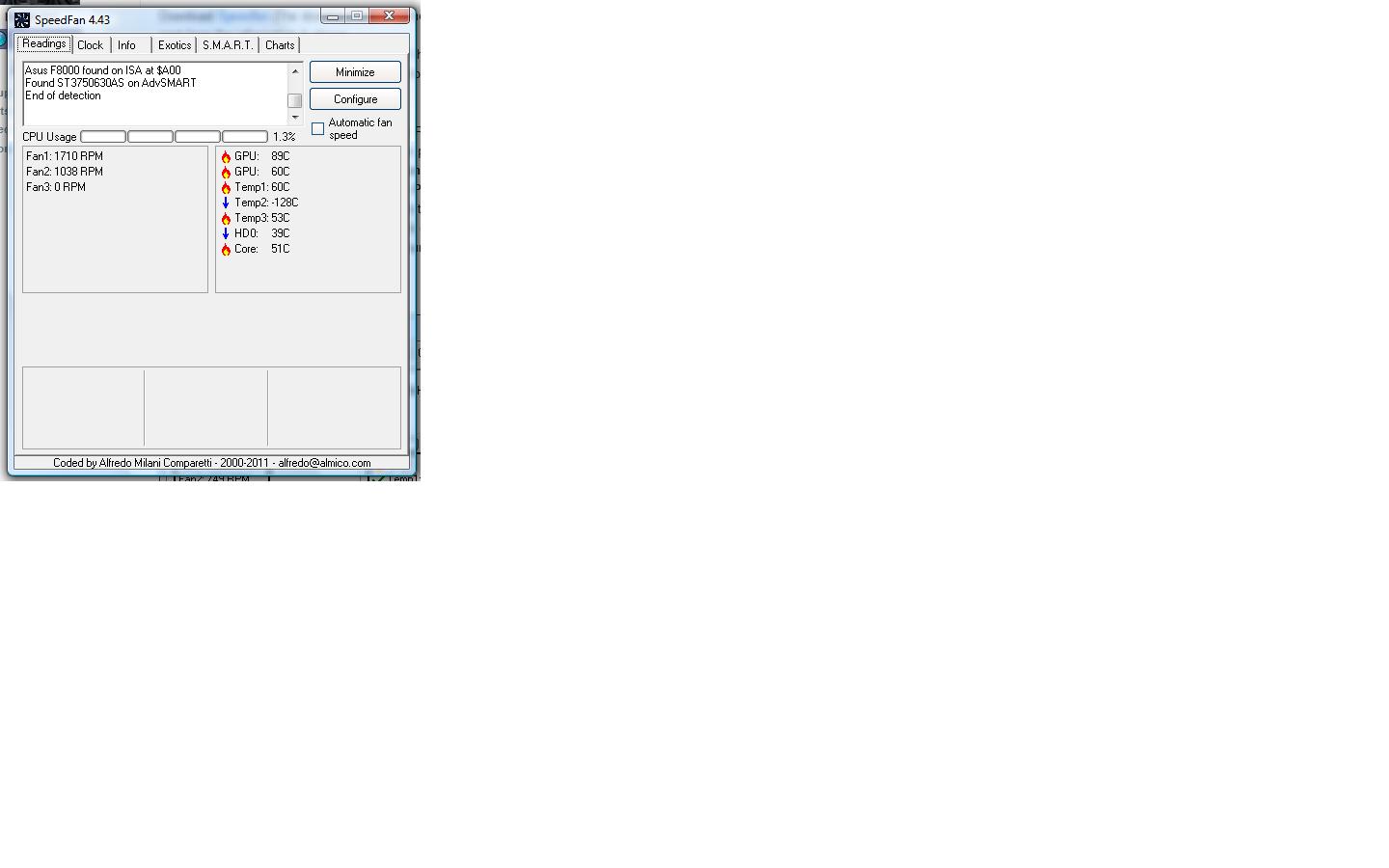

To make sure we are getting all the correct information it would help us if you were to attach a screenshot like the one below of your Speedfan
To do a screenshot please have click on your Print Screen on your keyboard.
- It is normally the key above your number pad between the F12 key and the Scroll Lock key
- Now go to Start and then to All Programs
- Scroll to Accessories and then click on Paint
- In the Empty White Area click and hold the CTRL key and then click the V
- Go to the File option at the top and click on Save as
- Save as file type JPEG and save it to your Desktop
- Attach it to your next reply
If you have more than one RAM module installed, try starting computer with one RAM stick at a time.NOTE Keep in mind, the manual check listed above is always superior to the software check, listed below. DO NOT proceed with memtest, if you can go with option AB.
If you have only one RAM stick installed...
1. Download - Pre-Compiled Bootable ISO (.zip)
2. Unzip downloaded memtest86+-2.11.iso.zip
3. Inside, you'll find memtest86+-2.11.iso
4. Download, and install ImgBurn
5. Insert blank CD into your CD drive.
6. Open ImgBurn
, and click on Write image file to disc
7. Click on Browse for a file...
8. Locate memtest86+-2.11.iso
file, and click Open
9. Click on ImgBurn green arrow to start burning bootable memtest86 CD:
10. Once the CD is created, boot from it, and memtest will automatically start to run. You may have to change the boot sequence in your BIOS to make it work right.
To change Boot Sequence
in your BIOS
Reboot the system and at the first post screen (where it is counting up memory)
start tapping the DEL
This will enter you into the Bios\Cmos
Find the Advanced
area and click Enter
Look for Boot Sequence
or Boot Options
and highlight that click Enter
Now highlight the first drive and follow the directions on the bottom of the screen on how to modify it and change it to CDrom
Change the second drive to the C or Main Drive
Once that is done then click F10 to Save and Exit
You will prompted to enter Y
to verify Save and Exit
. Click Y
and the system will now reboot with the new settings.
The running program will look something like this depending on the size and number of ram modules installed:
It's recommended to run 5-6 passes
. Each pass contains very same 8 tests
This will show the progress of the test. It can take a while. Be patient, or leave it running overnight.
The following image is the test results area:
The most important item here is the “errors” line. If you see ANY errors, even one, most likely, you have bad RAM.
