Laptop crash with bootable CD


  • Please log in to reply

#166
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
Can you take a picture of the area because it isn't registering to me where it is coming from.
  • 0

Advertisements


#167
Macboatmaster

Macboatmaster

    7k

  • Member
  • PipPipPipPipPipPipPipPip
  • 7,237 posts
Without stating the obvious I hope, turn your speakers OFF if by chance you have not already done so.
  • 0

#168
ramaflore

ramaflore

    Member

  • Topic Starter
  • Member
  • PipPipPip
  • 210 posts
I checked again and it's all the screen if I put my ears against the screen, from the bottom until the top.

Can you take a picture of the area because it isn't registering to me where it is coming from.


  • 0

#169
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
Well that is something different then since the fan is in the lower part of the laptop. I would have to agree with Mac on that and check the speakers.
  • 0

#170
ramaflore

ramaflore

    Member

  • Topic Starter
  • Member
  • PipPipPip
  • 210 posts
Speakers are OFF.

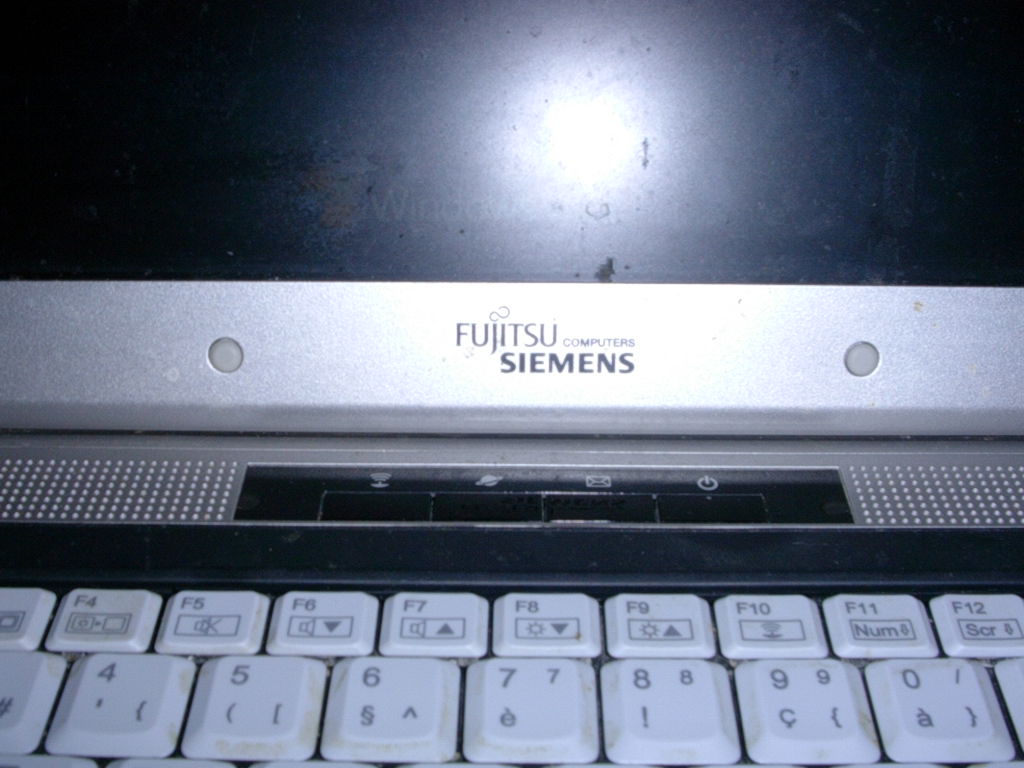

Look at the screenshots. Just behind 'fujitsu Siemens' written, the temperature is hot and the sound is coming from all the screen and from 'fujitsu Siemens'.

Attached Thumbnails

  • DSCN0588.JPG

Edited by ramaflore, 05 September 2012 - 12:22 PM.

  • 0

#171
Macboatmaster

Macboatmaster

    7k

  • Member
  • PipPipPipPipPipPipPipPip
  • 7,237 posts
My guess is the inverter
reduce the resolution and the colours see what happens then
also maybe connected between screen and motherboard not properly made

usually that would not account for the noise, especially the bass sound

an external monitor MAY provide a better clue
  • 0

#172
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
I would have suggested trying a external monitor also to see if that resolved the sound issue as well.
From the picture and description I am guessing a faulty and\or failing inverter and\or back light.
  • 0

#173
Macboatmaster

Macboatmaster

    7k

  • Member
  • PipPipPipPipPipPipPipPip
  • 7,237 posts
I think my colleague has it - I know I said the inverter, but I concede.
The CCFL
Cold Cathode Fluorescent Lamp (CCFL)
is the more likely suspect I think - I have to admit it was Google not my knowledge of CCFL

I read that a poor connection is ONE possible cause, and this results in overheating and eventual failure of the CCFL or indeed I read more serious damage

Unfortunately I do not think the cause will be postively established with our help, more likely I think a dismantling is going to be needed.

It does appear that your Amilio has the CCFL
http://www.screentek...explained.shtml

as against the LEDS
http://www.screentek...cd-screen.shtml
  • 0

#174
ramaflore

ramaflore

    Member

  • Topic Starter
  • Member
  • PipPipPip
  • 210 posts
I think it's the inverter as it comes from the bottom of the screen and it still hot.

Anyway, I couldn't test with an external monitor to test.

I will check the connection and try with a low resolution.

It's a buzzy sound as described My link
  • 0

#175
ramaflore

ramaflore

    Member

  • Topic Starter
  • Member
  • PipPipPip
  • 210 posts
With low resolution, not better.

I also check the connection, but nothing changes.
  • 0

Advertisements


#176
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
The only way is to borrow a monitor to do the external monitor test. This will disable the onboard laptop monitor and if the issue stops we will know for sure.
  • 0

#177
ramaflore

ramaflore

    Member

  • Topic Starter
  • Member
  • PipPipPip
  • 210 posts
Could I use another laptop to make the test or only with an external monitor ?
  • 0

#178
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
You have to use the laptop having the issue to hook the external monitor to.
  • 0

#179
rshaffer61

rshaffer61

    Moderator

  • Moderator
  • 34,114 posts
Are you still having problems with your issue?
It has been 23 days since your last response and I was wondering if the issue has been resolved?
If so can you explain how it was resolved so others may be able to fix it if they have the same issue.
If not please let us know and we can continue with helping you to resolve the issue.
