''Insert boot media in selected boot device and press a key

disk error wont start boot device

Best Answer Dashing star , 05 August 2015 - 10:18 PM

I did not got your picture though i suggest you to change the port for DVD also if still problem exist try to clear the cmos.If you dont know how to clear the cmos do not hesistate to ask! Reg... Go to the full post »


  • Please log in to reply

#1
simon_grylls

simon_grylls

    Member

  • Member
  • PipPip
  • 61 posts
When I switched on my computer it won't start and after boot screen it shows an message

Intel UNDI, PXE-2.1 (build 083)
Copyright © 1997-2000 Intel Corporation

This Product is covered by one or more of the following patents:
US5,307,459, US5,434,872, US5,732,094, US6,570,884, US6,115,776 and
US6,327,625

Realtek PCIe GBE Family Controller Series v2.35 (06/14/10)
PXE-E61: Media test failure, check cable

PXE-MOF: Exiting PXE ROM.

Reboot and Select proper Boot device
or Insert Boot Media in selected Boot device and press a key



And when I restart it shows the same error...
Pls help me.....

Thanks in advance

My system

Intel dual core E5700 @3.00Ghz
Win 7 ultimate
2 GB ram
300 GB hard disk

Edited by simon_grylls, 03 August 2015 - 07:26 PM.

  • 0

Advertisements


#2
Dashing star

Dashing star

    Member

  • Member
  • PipPipPip
  • 722 posts

Under boot option check whether the hard disk is on first booting device!


  • 0

#3
simon_grylls

simon_grylls

    Member

  • Topic Starter
  • Member
  • PipPip
  • 61 posts
Thanks for the response

I've checked that
The hard disk is on first booting device
But still I'm getting that error message
  • 0

#4
Dashing star

Dashing star

    Member

  • Member
  • PipPipPip
  • 722 posts

as you say,



PXE-E61: Media test failure, check cable



If it is desktop then check for cables, ie) SATA or IDE



change it and check whether it is booting


  • 0

#5
simon_grylls

simon_grylls

    Member

  • Topic Starter
  • Member
  • PipPip
  • 61 posts
Mine is desktop
But I don't see SATA or IDE on first booting device selection
  • 0

#6
lee1976uk

lee1976uk

    Member

  • Member
  • PipPipPip
  • 109 posts
Hi Simon

What dash is saying I think is to physically check the cable from the motherboard to the hard drive. See if it has come loose. Did anything happen to the desktop before you had this error?
  • 0

#7
simon_grylls

simon_grylls

    Member

  • Topic Starter
  • Member
  • PipPip
  • 61 posts
Oh I got it now
Nothing happens before getting this error
I'll check the cable now and I'll be back
  • 0

#8
simon_grylls

simon_grylls

    Member

  • Topic Starter
  • Member
  • PipPip
  • 61 posts
Yeah!
Its working
But taking more time than before to start
Is there is problem in that

And another worst thing is my DVD drive is vanished from Computer (I.e) it shows no DVD drive on windows explorer
  • 0

#9
Dashing star

Dashing star

    Member

  • Member
  • PipPipPip
  • 722 posts

Good to go!  :thumbsup:



You change sata port(in motherboard) or only sata cable ?



Did your DVD is viewed on Disk management?



Edit: Thanks for lee1976uk for explaining!


Edited by Dashing star, 04 August 2015 - 05:47 AM.

  • 0

#10
simon_grylls

simon_grylls

    Member

  • Topic Starter
  • Member
  • PipPip
  • 61 posts
No friend I didn't change anything
I just pressed the cable a little.
Maybe it was in loose connect

And answer to your question is NO
The drive is not shown in disk management
  • 0

Advertisements


#11
Dashing star

Dashing star

    Member

  • Member
  • PipPipPip
  • 722 posts

what about booting speed now?



Is your DVD is sata connector?



Can you post the image of disk management and BIOS?


  • 0

#12
simon_grylls

simon_grylls

    Member

  • Topic Starter
  • Member
  • PipPip
  • 61 posts
Booting speed is four times slower than normal

And I'll give the information of your other two questions later
Cuz I'm stuck with my examination so can't access the computer for two days
And I'm so sorry for that
  • 0

#13
simon_grylls

simon_grylls

    Member

  • Topic Starter
  • Member
  • PipPip
  • 61 posts
I got it
Yeah its an sata cable
I attached the pic
  • 0

#14
Dashing star

Dashing star

    Member

  • Member
  • PipPipPip
  • 722 posts
✓  Best Answer

I did not got your picture though i suggest you to change the port for DVD also if still problem exist try to clear the cmos.

If you dont know how to clear the cmos do not hesistate to ask!



Regards


  • 0

#15
simon_grylls

simon_grylls

    Member

  • Topic Starter
  • Member
  • PipPip
  • 61 posts

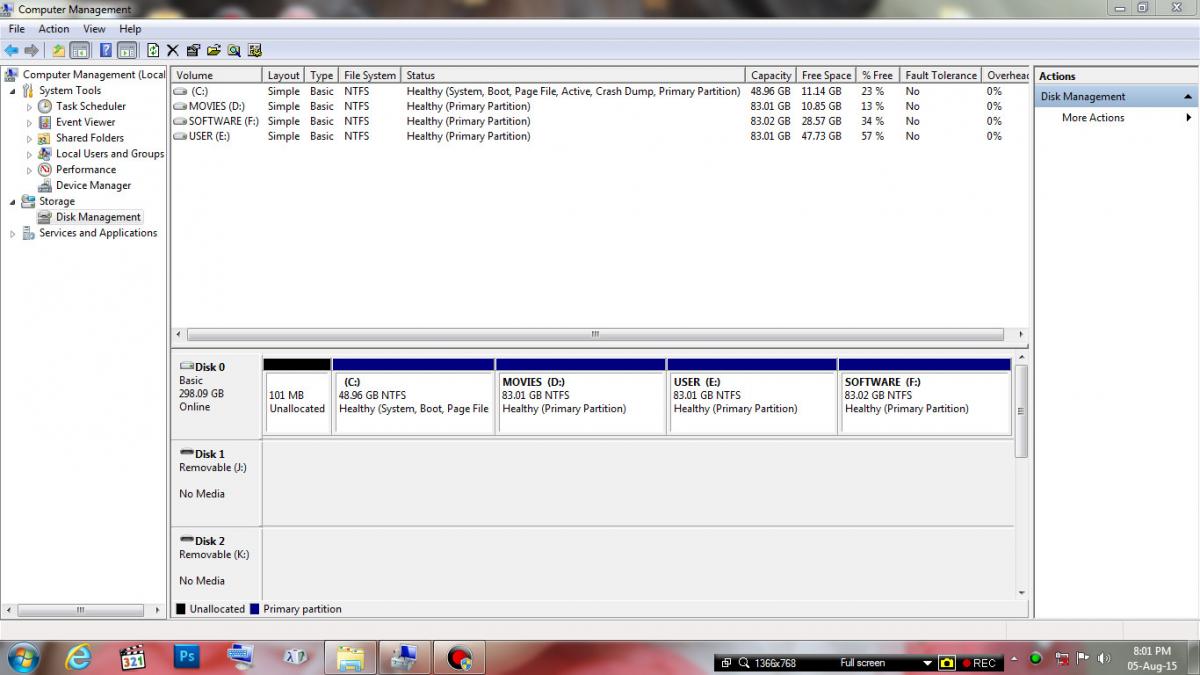

Here I attached the pic

And really I don't have any idea about cmos

Attached Thumbnails

  • disk management.jpg
