LSI RAID migration not showing correct capacity in Windows 10

- - - - -

Best Answer SleepyDude , 13 March 2016 - 05:17 PM

Hi, After adding more space to the Raid volume did you resize the partition on Windows to use the extra space? Go to the full post »


  • Please log in to reply

#1
strikermed

strikermed

    Member

  • Member
  • PipPipPip
  • 230 posts

I need some help with a mystery.  I have a LSI MegaRAID 9260 8i RAID controller.  I have four 2TB drives in RAID 0 that report correctly in windows.  I also have two 6TB drives in RAID 1.  I expanded the RAID 1 with two more 6TB drives and migrated it to RAID 6.  This should provide me with 10TB of space.



I did the expansion via the MegaRAID Storage manager.  The Storage manager shows 10TB of space and it's all optimzed,



Here are two pictures showing my MegaRAID Storage Manager and the issue on windows 10.

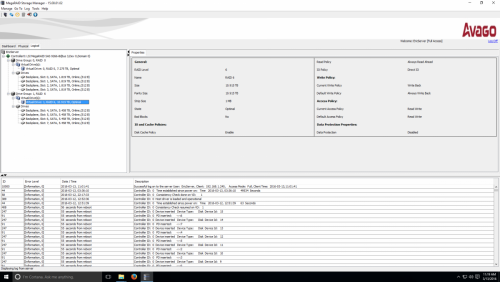

MegaRAID Storage Manager after RAID 6 migration.png

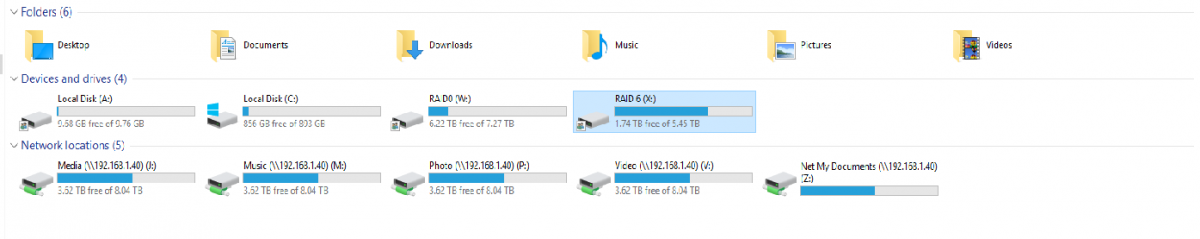

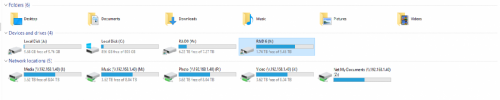

Windows showing half the amount.png



Windows seems to not be reporting properly.  I've restarted the machine several times, and I haven't been able to get it to correctly report the size.  I want to avoid destroying the RAID and rebuilding it if I can to get it to report.  I have plans to expand an additional 4 disks in the future (eventually destroying or migrating the RAID 0 to another RAID Card).



Has anyone seen this before, or does anyone know how to fix this issue?



Thanks!


  • 0

Advertisements


#2
SleepyDude

SleepyDude

    Trusted Helper

  • Malware Removal
  • 4,854 posts
✓  Best Answer

Hi,



After adding more space to the Raid volume did you resize the partition on Windows to use the extra space?


  • 0

#3
strikermed

strikermed

    Member

  • Topic Starter
  • Member
  • PipPipPip
  • 230 posts

I feel so foolish.  This was a very easy fix, and I can't believe I didn't think of this.  I guess when you are working with a new technology, you get caught up in the unfamiliar and forget the simple solutions.



Thanks for bringing this to my attention!


  • 0

#4
SleepyDude

SleepyDude

    Trusted Helper

  • Malware Removal
  • 4,854 posts

Thanks for bringing this to my attention!


No problem. I always forget something to :)
  • 0
