! Please need help ! salvaging unique hard drive

ide sata ata hard drive harddrive adapter reader

  • Please log in to reply

#1
mk_109

mk_109

    New Member

  • Member
  • Pip
  • 1 posts

Ive spent so much time searching online with no answer and also brought to Geek squad who was no help...regarding my HP Livestrong laptop from ~12 years ago. Im not much of a computer guy so maybe the answer is obvious to some.

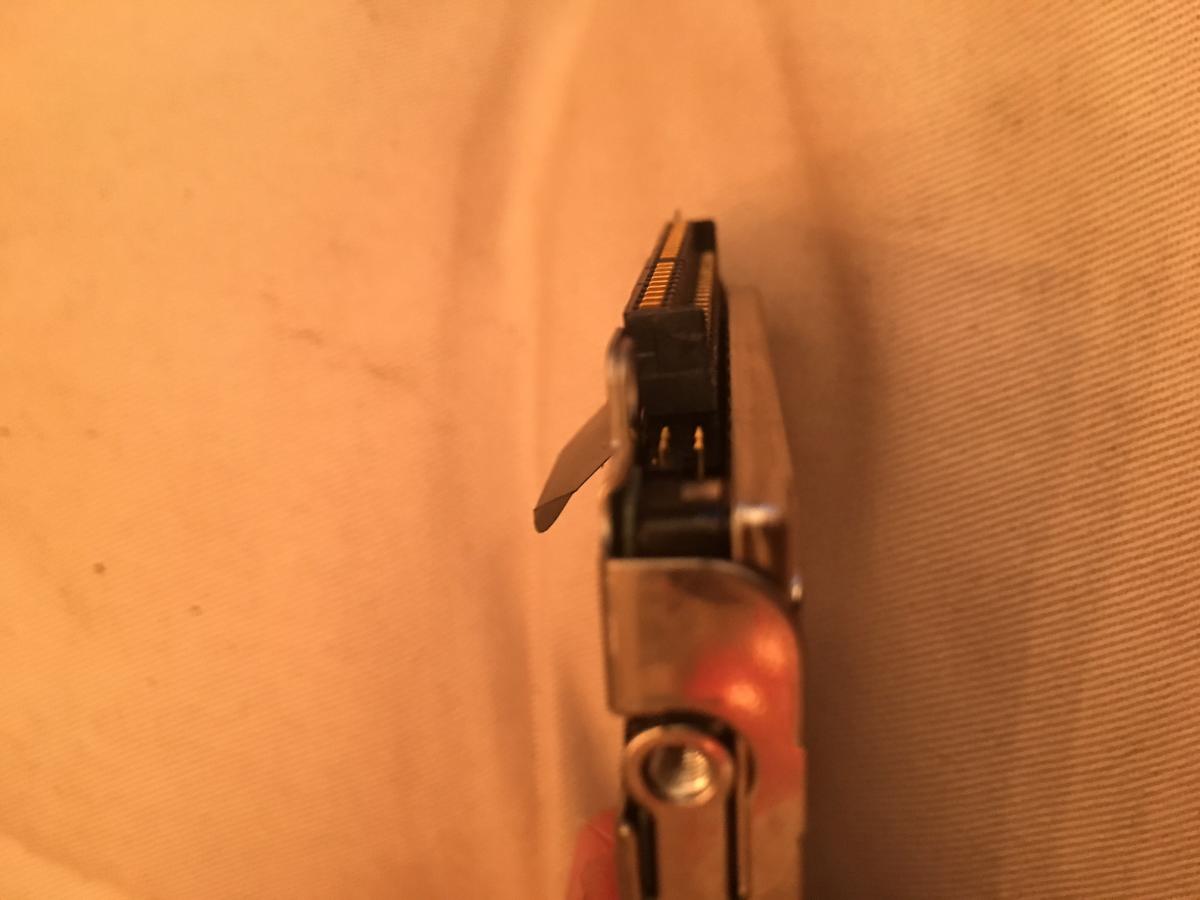

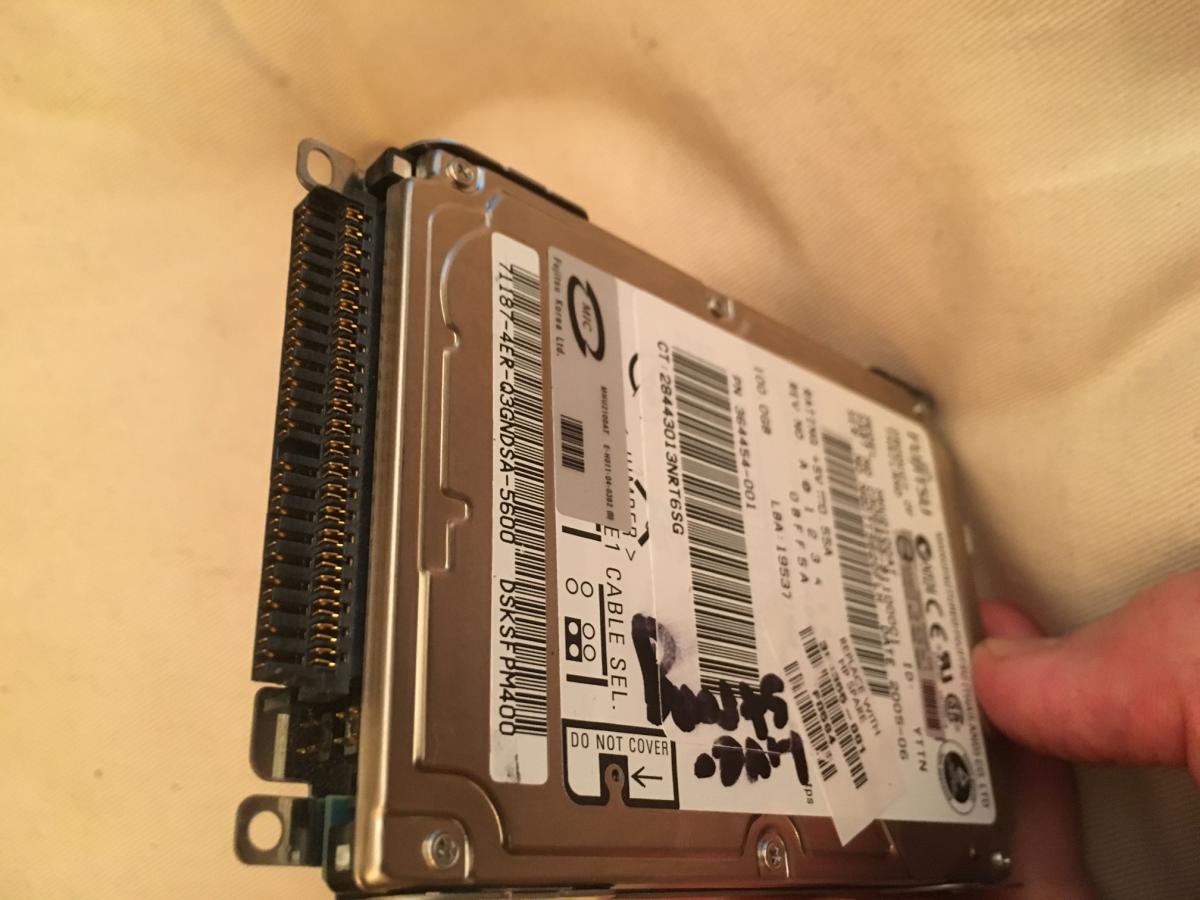

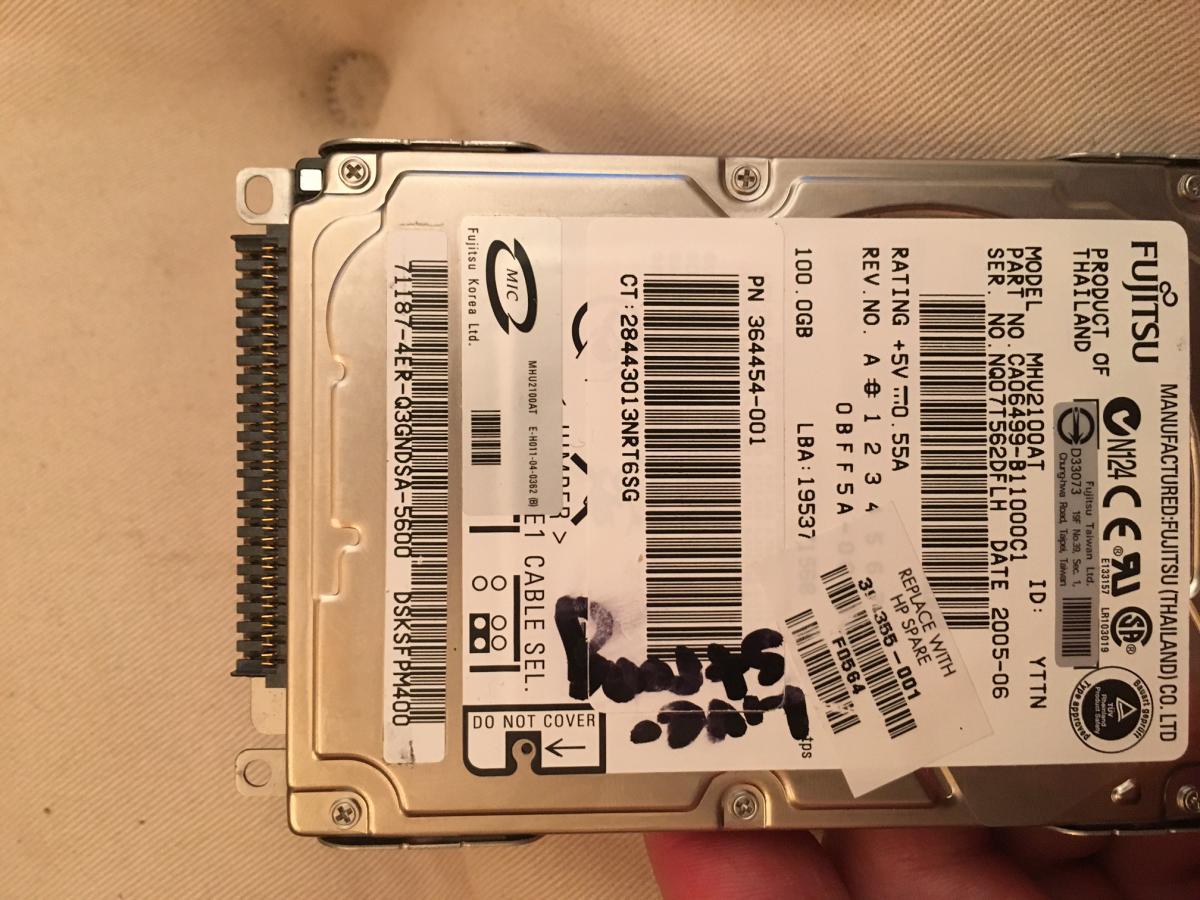

Need help with extracting HD, it doesnt seem like a standard size, see pics. The screen went out a while back, doesnt work with external display, otherwise still turned on and loaded (screen was ever so faint which is how I knew it was on, but not enough to see or navigate, so HD still good). So I removed HD and tossed the rest. Bought some different universal hd reader/adapters but none fit. All I know is that it is a "Fujitsu Mobile MHU2100AT - hard drive - 100 GB - ATA-100"



Please if someone can refer me to the correct reader or an ide/sata -to- (whatever mine is) adapter so I can extract the contents, I would be very grateful.



Thank you!!!!!!!!!!!

Attached Thumbnails

  • IMG_1607.JPG
  • IMG_1608.JPG
  • IMG_1609.JPG

  • 0

Advertisements


#2
SleepyDude

SleepyDude

    Trusted Helper

  • Malware Removal
  • 4,149 posts

Hi :welcome:



The HDD its IDE type, to connect to some IDE -> USB adapter you need to remove first the connector used to connect to the laptop interface. Push gently in both sides to avoid bend the pins.

Big-Promation-Hard-Drive-Connector-font-

You can see the HDD without the adapter on this image http://www.chip.de/i..._2f16866600.jpg


Edited by SleepyDude, 25 July 2016 - 04:05 AM.

  • 0

#3
iammykyl

iammykyl

    Tech Staff

  • Technician
  • 6,763 posts

Here is the Fujitsu MHU2100AT Manual, > http://www.manualsli...ive.html#manual
