Switching from slim to tower


  • Please log in to reply

#1
SebiMasterLuv

SebiMasterLuv

    New Member

  • Member
  • Pip
  • 6 posts

To start off , I am not a good pc guy, and second of all im trying to upgrade from a slim pc case to a big one

And i don't know what parts can be reused or what else i need in order to have a functional new pc.



 PC parts:

CPU Intel core i5 2400 3.1ghz

RAM 12GB Dual Channel DDR3 @ 665MHz

Lenovo motherboard

Graphics card 512mb NVIDIA Geforce 310

Storage 465GB Seagate ST350031 2CS SCSI Disk Device (SATA)

Optical drive Optiarc DVD RW AD-7250H SCSI

Audio NVIDIA high def sound card



I think of using it for "gaming" even tho i dont aim for high prices for the parts

So any parts that would range from small to middle that would be great, thanks!




  • 0

Advertisements


#2
SpywareDr

SpywareDr

    Member 3k

  • Member
  • PipPipPipPipPipPip
  • 3,740 posts

All of that should fit inside a normal tower. Don't know if the motherboard ports will line up perfectly with the back of the tower case. Oh, and you'll probably need a normal PSU (power supply unit), instead of the smallish one that comes in many slim cases.


  • 0

#3
iammykyl

iammykyl

    Tech Staff

  • Technician
  • 7,239 posts

Gday.

Is the computer branded? sounds like this > https://support.leno...utions/pd008634

See this thread, > https://forums.lenov...se/td-p/3951312



What would be your budget?


  • 0

#4
SebiMasterLuv

SebiMasterLuv

    New Member

  • Topic Starter
  • Member
  • Pip
  • 6 posts

Gday.

Is the computer branded? sounds like this > https://support.leno...utions/pd008634

See this thread, > https://forums.lenov...se/td-p/3951312



What would be your budget?

Yep , it's that one, I remember now from the guy that I bought it from for like 200 dollars.

After i bought the pc i got the geforce 310 and got it in.



Gonna check out those threads too in a sec



The budget can be around 400 to 1000 dollars, im not gonna buy everything at once anyways, just gonna slowly build it up as time goes on.


  • 0

#5
SebiMasterLuv

SebiMasterLuv

    New Member

  • Topic Starter
  • Member
  • Pip
  • 6 posts

All of that should fit inside a normal tower. Don't know if the motherboard ports will line up perfectly with the back of the tower case. Oh, and you'll probably need a normal PSU (power supply unit), instead of the smallish one that comes in many slim cases.



How will I know if the motherboard ports will line up or not? do I gotta check beforehand on the case? or will I need to get some holes into it  :laughing:

And I guess i can get a PSU pretty easily.


  • 0

#6
SpywareDr

SpywareDr

    Member 3k

  • Member
  • PipPipPipPipPipPip
  • 3,740 posts

What is the model number of the motherboard? Or, if unknown, what was the model number of the computer it came out of?


  • 0

#7
SebiMasterLuv

SebiMasterLuv

    New Member

  • Topic Starter
  • Member
  • Pip
  • 6 posts

What is the model number of the motherboard? Or, if unknown, what was the model number of the computer it came out of?

I dont have any of that kind of info about the pc


  • 0

#8
SpywareDr

SpywareDr

    Member 3k

  • Member
  • PipPipPipPipPipPip
  • 3,740 posts

Well in that case, I'm afraid I don't have enough information to answer your "How will I know if the motherboard ports will line up or not?" question.


  • 0

#9
SebiMasterLuv

SebiMasterLuv

    New Member

  • Topic Starter
  • Member
  • Pip
  • 6 posts

Well in that case, I'm afraid I don't have enough information to answer your "How will I know if the motherboard ports will line up or not?" question.

Could i get you a photo?


  • 0

#10
SebiMasterLuv

SebiMasterLuv

    New Member

  • Topic Starter
  • Member
  • Pip
  • 6 posts

Well in that case, I'm afraid I don't have enough information to answer your "How will I know if the motherboard ports will line up or not?" question.

If not heres this site some other person sent me on this post https://support.leno...utions/pd008634

And i think this is the answer

  • (4x3) Small form factor with Intel Q67 Chipset

  • 0

#11
SpywareDr

SpywareDr

    Member 3k

  • Member
  • PipPipPipPipPipPip
  • 3,740 posts

As you can see from the red lines below I overlaid on the images below, it looks like the motherboard from your Lenovo ThinkCentre M91 small form factor case might fit into a Lenovo ThinkCentre Edge Mseries Tower case.


Can't guarantee it of course.


  • 0

#12
iammykyl

iammykyl

    Tech Staff

  • Technician
  • 7,239 posts

Gday.

Best if we get some clarification.

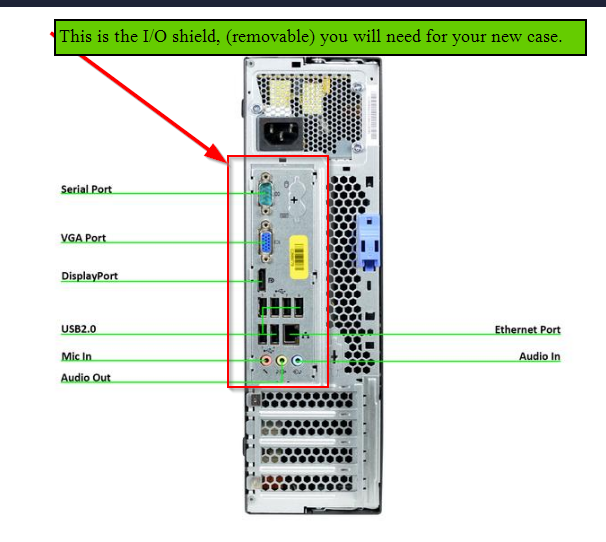

do you have a complete computer?   If yes, you need the rear I.O shield, example, first picture.  Yours may only have a DVI and Displayport.

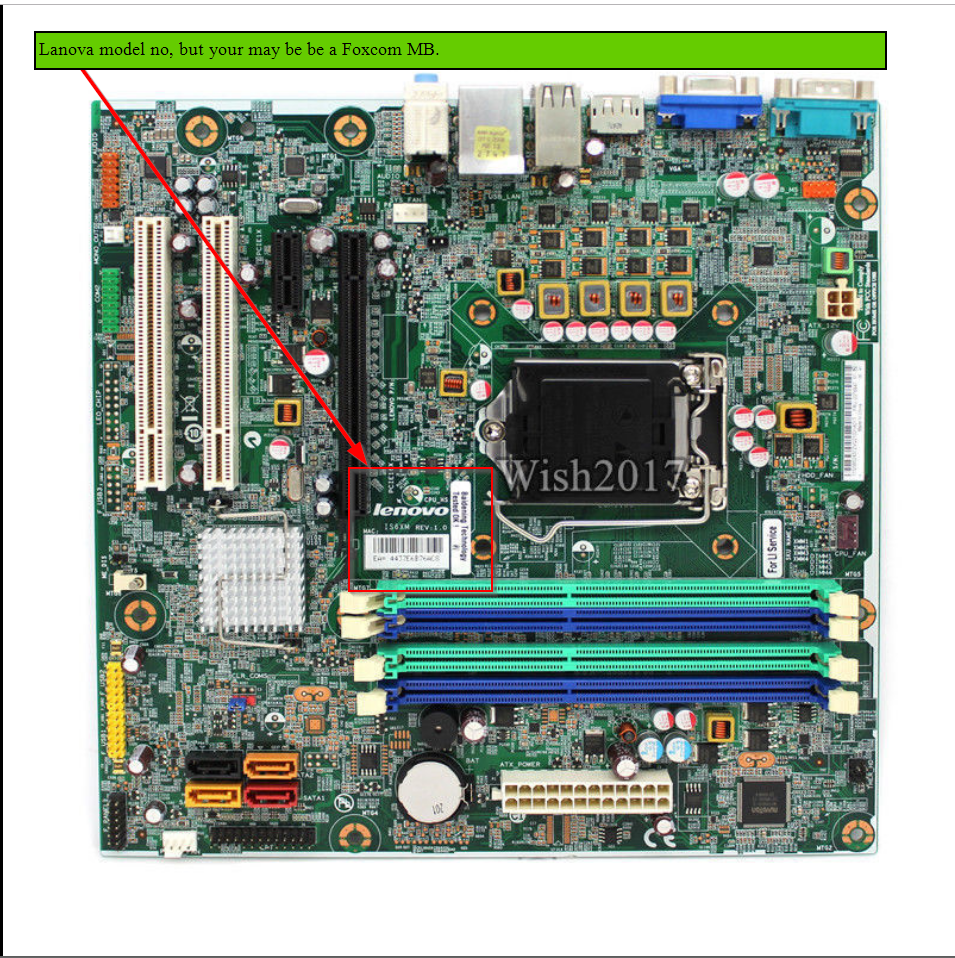

If you only have the MB, example, second picture.



If you only have parts, please list them.



LINKS

Maintenance manual, > https://download.len...pdf/0b01241.pdf

Read and/or research.   You will need to register to post questions, > https://forums.lenov...enovo M91p SFF



The header on the MB for the power, aujdio and USb Pinout is custon wired, so it will need to be rewired, > https://forums.lenov...ght/true#M11610

Ther is also a thermal sensor from the SFF case plugged into the MB, you will need that to control the fans.

Attached Thumbnails

  • 2018-11-26 20_29_27-Lenovo ThinkCentre M91p — Rev Technology.png
  • Lanova MB..png

  • 0

#13
belkinn1

belkinn1

    New Member

  • Member
  • Pip
  • 6 posts

You'll have problems if you wish to use same motherboard. You'll have to disbale secure boot and many motherboards doesn't support new graphics card because of incompatibility issues. I suggest replace the motherboard with full ATX.




  • 0
