RET-L (red)
RET -R (grey)
MIC BIAS (brown)
FROUT-L (blue)
FROUT-R (yellow)
MIC (green)
GND - (black)
The confusing part is the two grounds. My mobo is an Asus A8N-SLI premium and follows the standard fpanel layout:
+5v
Ground
Ground
Speaker

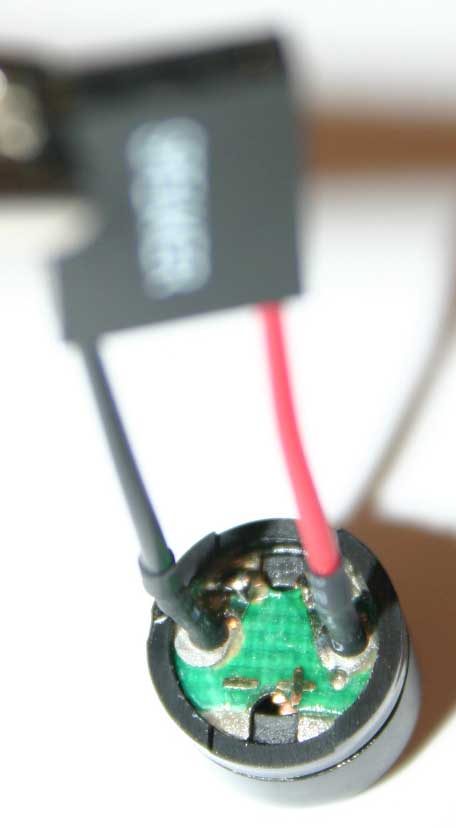

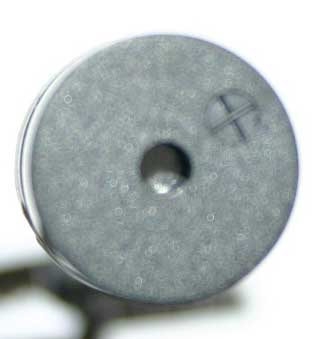

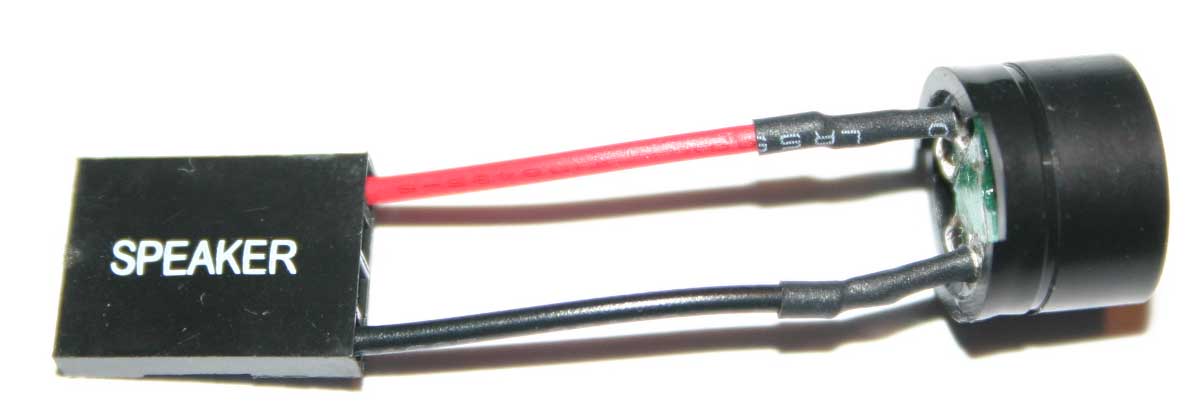

I called Antec manufacturer and they told me that they need to send me a part to fit my mobo, I got the part yesterday and I have never seen this kind of part. I have no idea how does it work. I have been trying to find more information about this part. The description of the part is a 4-pin with two wires (red and black) connected a ¼ inch height and ½ inch width round black with a very tiny hole in the middle. Any ideas how it works? I uploaded 3 pictures of the part if you unsure what I have tried to describe it.
Hope someone will be able to help me.
TIA!
