Replacing CMOS battery in an Optiplex 760


  • Please log in to reply

#1
Janis

Janis

    Member

  • Member
  • PipPipPip
  • 291 posts

I have changed many CMOS batteries in the past.   The 760 is problematic for me.  The directions in the manual show a battery holder with a clip,   Mine appears to be solid , no clip.  Applying light pressure on the battery seems to have no effect.   Suggestions appreciated.


  • 0

Advertisements


#2
Kemasa

Kemasa

    Nobody

  • Technician
  • 1,609 posts

A photo would be helpful.


  • 0

#3
123Runner

123Runner

    Member 4k

  • Member
  • PipPipPipPipPipPipPip
  • 4,331 posts

Is it a coin type battery as most are?

If so then there is a clip holding it.



A picture would help.


  • 0

#4
Janis

Janis

    Member

  • Topic Starter
  • Member
  • PipPipPip
  • 291 posts

Sorry I can't post a photo.   Still in the moving process, somewhere in a box is a camera.   The battery compartment looks just like the one posted on Dell support but lacks the back tab/click  Thanks for trying.


  • 0

#5
Channeal

Channeal

    Member

  • Member
  • PipPipPip
  • 690 posts

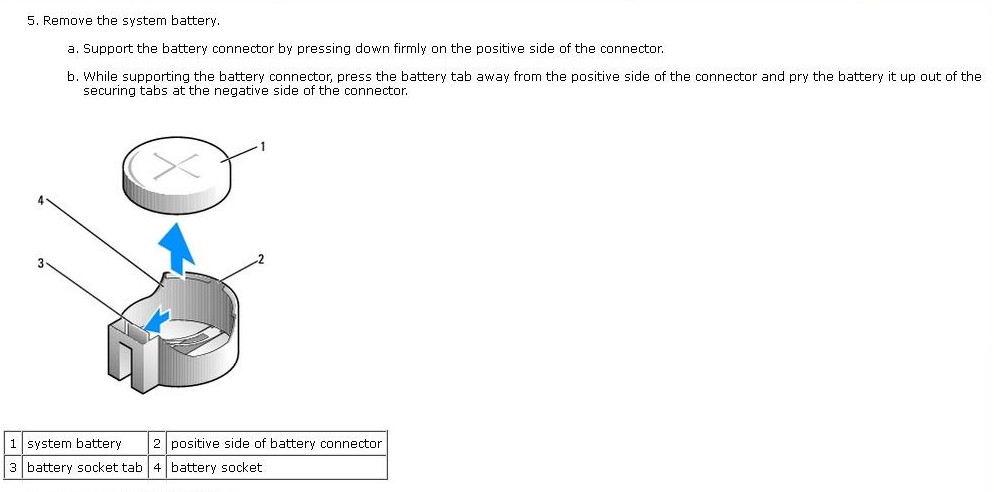

Does this help?













  • 0

#6
123Runner

123Runner

    Member 4k

  • Member
  • PipPipPipPipPipPipPip
  • 4,331 posts

That's what I found in the manual.

It's also how pretty much all cmos batteries are changed out.

We need to see what yours looks like.



You're in the process of moving, so when you get a chance.


  • 0

#7
Channeal

Channeal

    Member

  • Member
  • PipPipPip
  • 690 posts
Wasn't meaning to interfere 123Runner. Just thought that showing Janis a picture of what the manual says it should look like might help her suss out what might be causing the problem. :(
  • 0

#8
CANNES450

CANNES450

    New Member

  • Member
  • Pip
  • 2 posts

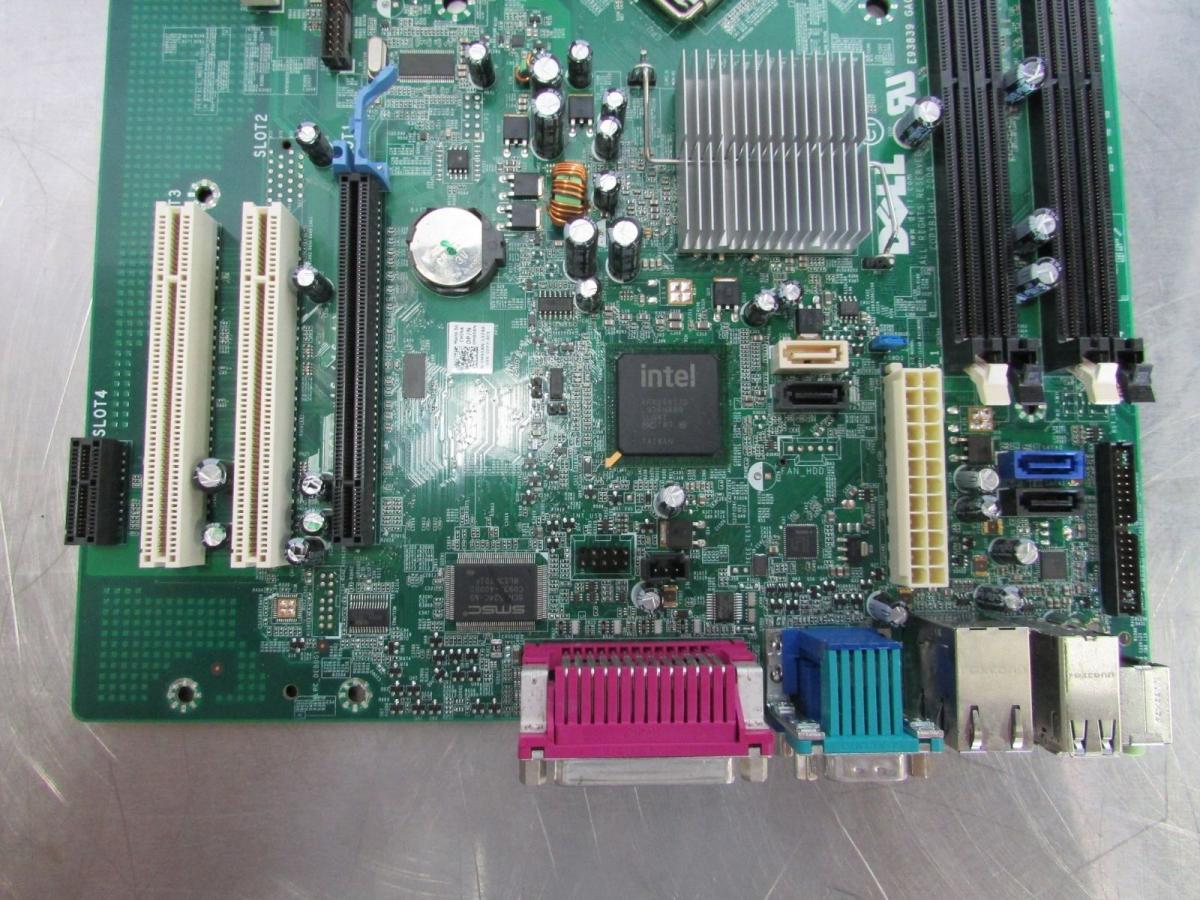

760 $_10.JPG


  • 0

#9
CANNES450

CANNES450

    New Member

  • Member
  • Pip
  • 2 posts

Gently push a very small screw driver into the slot in front of battery casing, in front of the large black connector.

The battery will then pop out. To put a new one back just push it in.


  • 0
